01 - Body/cavity/elements


02 - Door Assembly


03 - Internal Controls/latch Asy/base

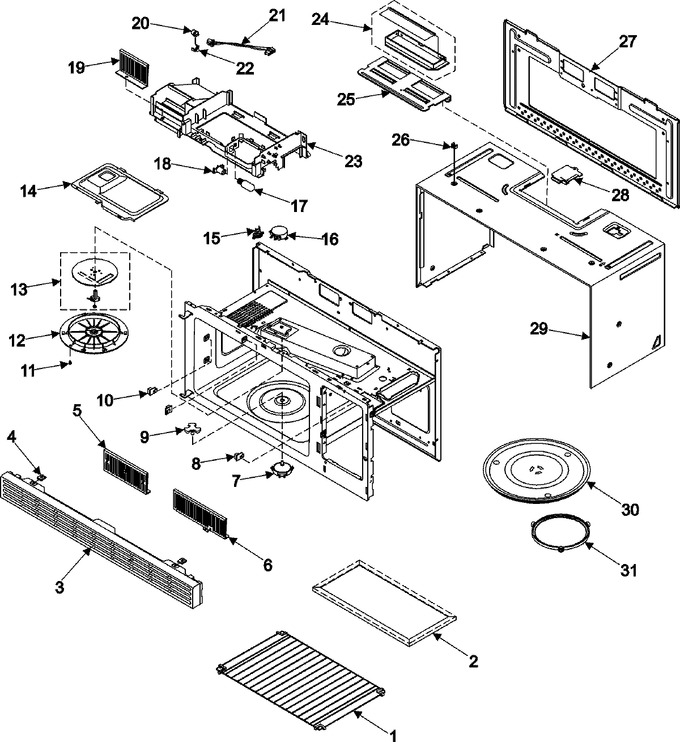

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE97-00096A		Assy-rack Wire		Appelez-nous	-
2	555555		Filter-charocal   (Replaces: DE63-30016A)				$ 168.82
3	DE64-00325B		Grille		Appelez-nous	-
4	DE65-00004A		Clip-grille				$ 2.87
5	DE61-00027A		Bracket-grille		Appelez-nous	-
6	DE71-60384A		Cover-front		Appelez-nous	-
7	555555		Motor, Drive   (Replaces: DE31-10172A)				$ 168.82
8	DE61-00040B		Holder-rack(b)				$ 121.97
9	DE67-60012A		Coupler				$ 19.53
10	DE61-00039B		Holder-rack(a)				$ 21.56
11	DE66-20095B		Button-lock				$ 19.53
12	DE71-60121A		Cover-stirrer				$ 18.69
13	DE97-00178B		Assy-stirrer				$ 23.81
14	DE61-50469A		Bracket-duct Upper		Appelez-nous	-
15	555555		Thermostat   (Replaces: DE47-20196A)				$ 168.82
16	DE31-10173A		Motor-drive				$ 60.97
17	4713-001013		Lamp-incandescent			Immediately	$ 20.00
18	DE47-00006A		Holder-lamp				$ 19.53
19	DE61-50542A		Bracket-filter		Appelez-nous	-
20	DE32-60013A		Sensor-gas				$ 105.22
21	DE39-40678A		Wire Harness-s				$ 32.34
22	DE61-90111A		Holder-sensor				$ 0.98
23	DE72-50098A		Duct-upper		Appelez-nous	-
24	555555		Assy-hood Damper   (Replaces: DE92-90242A)				$ 168.82
25	DE61-50545A		Bracket-v/t Motor				$ 19.53
26	DE92-90508A		Assy-holder Nut			Immediately	$ 19.53
27	DE61-50279A		Bracket-tco		Appelez-nous	-
28	DE61-50507A		Bracket-power Cord		Appelez-nous	-
29	DE70-10017H		Panel-outer		Appelez-nous	-
30	DE74-20016A		Tray, Glass Cooking				$ 123.02
31	DE92-90495A		Assy-guide Roller				$ 47.28

    View Diagram in Separate Window       Print Part List
