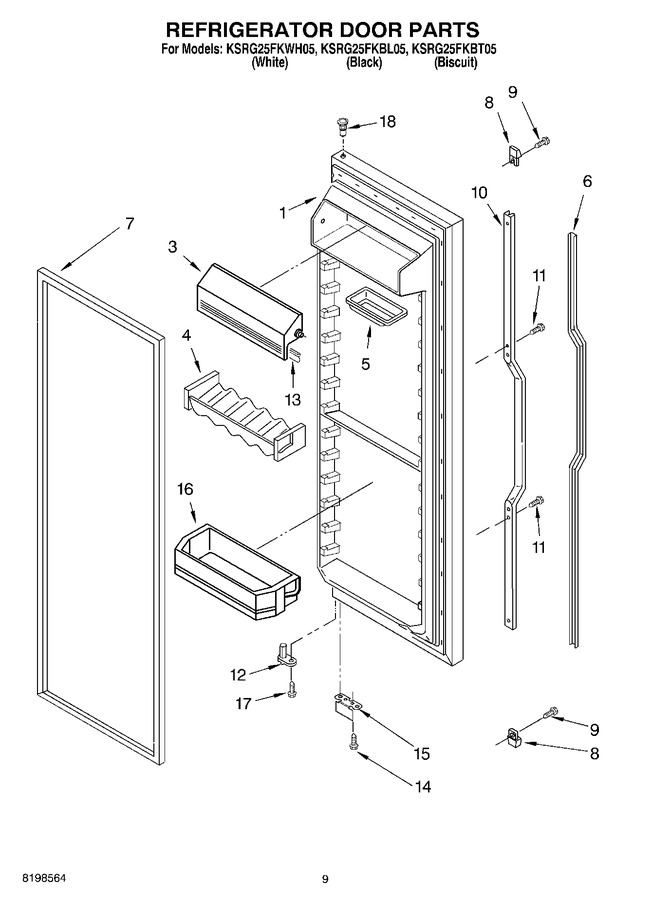

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207327W		Refrigerator Door (includes 7) (white)		Appelez-nous	-
1	2207327B		Refrigerator Door (includes 7) (black)		Appelez-nous	-
1	2207327T		Refrigerator Door (includes 7) (biscuit)		Appelez-nous	-
3	2218122		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Butter, Dish		Appelez-nous	-
6	2186863T		Insert, Handle (biscuit)		Appelez-nous	-
6	2173829		Insert, Handle (black)		Appelez-nous	-
6	2173825		Insert, Handle (white)		Appelez-nous	-
7	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
7	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
8	2194778B		End Cap, Handle (black)		Appelez-nous	-
8	2194778T		End Cap, Handle (biscuit)		Appelez-nous	-
8	2194778W		End Cap, Handle (white)		Appelez-nous	-
9	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
10	2194777W		Retainer, Insert (white)		Appelez-nous	-
10	2194777T		Retainer, Insert (biscuit)		Appelez-nous	-
10	2194777B		Retainer, Insert (black)		Appelez-nous	-
11	WP489491		Screw   (Replaces: 489491)				$ 7.30
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
15	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
