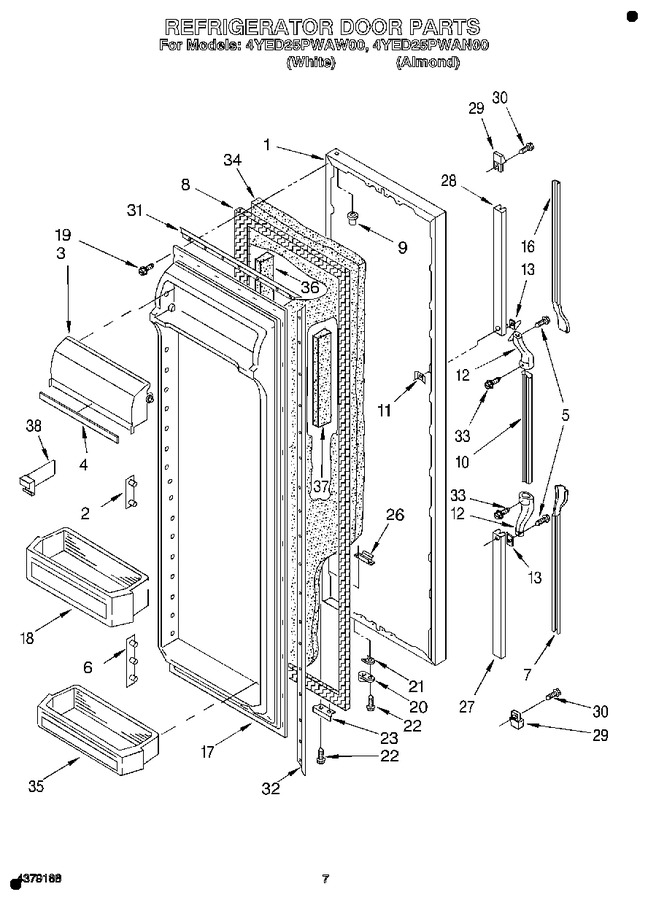

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110645		Refrigerator, Door Panel (almond (also Order Item 34))		Appelez-nous	-
1	1110642		Refrigerator, Door Panel (white)		Appelez-nous	-
2	1118048		Pin Plate (4)		Appelez-nous	-
3	2148702		Door, Compartment		Appelez-nous	-
4	1110717		Trim, Compartment Door		Appelez-nous	-
5	WPW10141645		Screw (4)   (Replaces: 489084)				$ 7.67
6	1116986		Pin Plate (10)				$ 12.10
7	1119361		Insert, Handle (white)		Appelez-nous	-
7	1119363		Insert, Handle (almond)		Appelez-nous	-
8	1127309		Door Gasket, Magnetic		Appelez-nous	-
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1118417		Handle, Center		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	1119359		End Cap, Center Handle		Appelez-nous	-
13	935075		Shim		Appelez-nous	-
16	1119375		Insert, Handle (almond)		Appelez-nous	-
16	1119373		Insert, Handle (white)		Appelez-nous	-
17	1124842		Panel, Interior Door		Appelez-nous	-
18	2163336		Shelf Bin (2)		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
20	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 27.36
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
22	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
23	1115906		Bracket, Door Stop		Appelez-nous	-
26	988402		Tap Plate		Appelez-nous	-
27	1119360		Retainer, Insert (bottom)		Appelez-nous	-
28	1119372		Retainer, Insert		Appelez-nous	-
29	2156220		End Cap (2)		Appelez-nous	-
30	489075		Screw		Appelez-nous	-
31	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
32	1118302		Gasket Retainer, Side (2)		Appelez-nous	-
33	489022		Screw (4)		Appelez-nous	-
34	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
35	2163337		Shelf Bin (2)		Appelez-nous	-
36	1115379		Reinforcement, Shelf		Appelez-nous	-
37	1119055		Reinforcement, Shelf		Appelez-nous	-
38	2152336		Divider, Bin		Appelez-nous	-
