SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

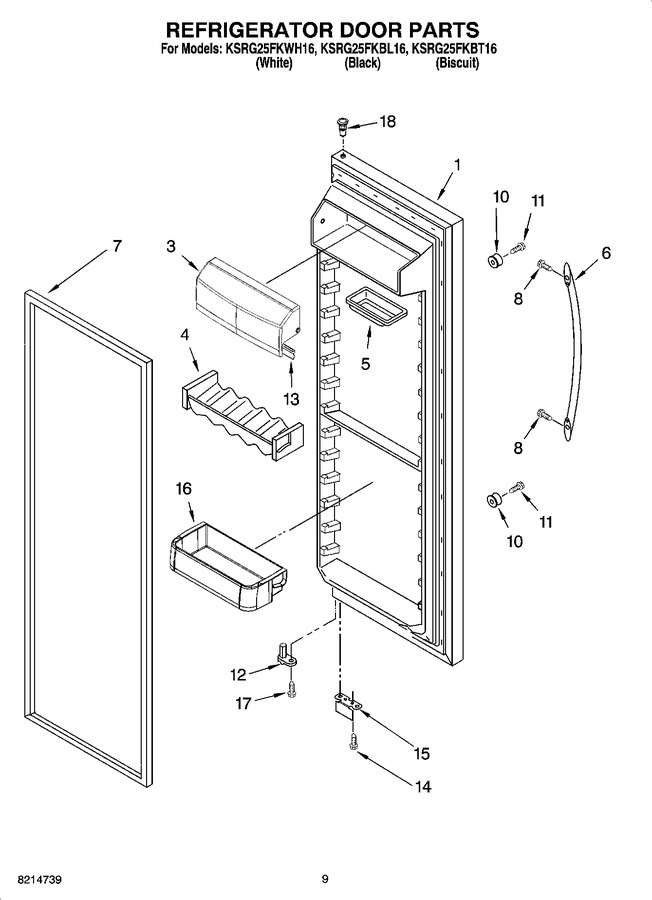

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301184B		Refrigerator Door (includes 7) (black)		Appelez-nous	-
1	2301184T		Refrigerator Door (includes 7) (biscuit)		Appelez-nous	-
1	2301184W		Refrigerator Door (includes 7) (white)		Appelez-nous	-
3	2301486		Door, Compartment		Appelez-nous	-
4	2193409K		Beverage Holder (2)		Appelez-nous	-
5	2165792K		Butter Dish				$ 9.72
6	2255516B		Handle (black)		Appelez-nous	-
6	2255516T		Handle (biscuit)		Appelez-nous	-
6	2255516W		Handle (white)		Appelez-nous	-
7	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
8	8533976		Screw (chrome)				$ 8.35
8	8533975		Screw (black)		Appelez-nous	-
10	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
11	WP488163		Screw   (Replaces: 488208)				$ 7.54
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
15	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
16	2171063K		Door Bin (4)				$ 41.12
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76

    View Diagram in Separate Window       Print Part List
