Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

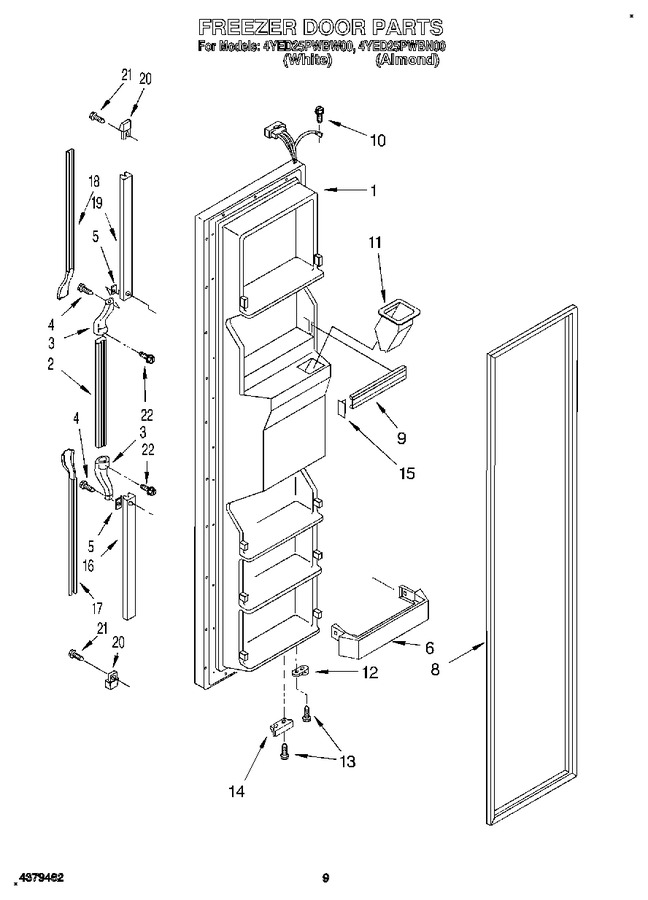

1	2167414		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2167415		Freezer Door (includes Item 8 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	1118417		Handle, Center		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WP489128		Screw   (Replaces: 488500)				$ 10.88
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2171168		Trivet, Shelf (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (repair)				$ 310.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2170921)			Immediately	$ 23.11
10	WP488234		Screw   (Replaces: 489422)				$ 6.74
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2155313)			Immediately	$ 27.36
13	WP999367		Screw   (Replaces: 489367)				$ 7.86
14	2155332		Bracket, Door Stop		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
16	1119360		Retainer, Insert		Appelez-nous	-
17	1119363		Insert, Handle (almond)		Appelez-nous	-
17	1119373		Insert, Handle (white)		Appelez-nous	-
18	1119361		Insert, Handle (white)		Appelez-nous	-
18	1119375		Insert, Handle (almond)		Appelez-nous	-
19	1119372		Retainer, Insert		Appelez-nous	-
20	2156220		End Cap (2)		Appelez-nous	-
21	489075		Screw		Appelez-nous	-
22	489022		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
