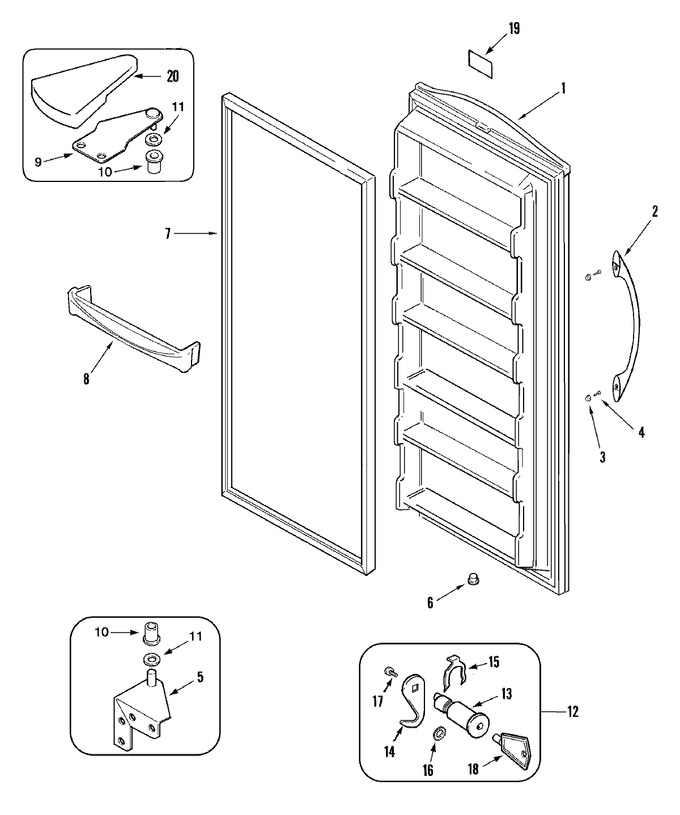

01 - Door
02 - Freezer Compartment
03 - Supplemental Information
04 - Unit Compartment & System
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68001716 | Door Assy., Frz. Foamed (wht) | 10 |
|
- | ||||
| 2 | 68001729 | Anchor, Handle | 10 |
|
- | ||||
| 2 | 68001717 | Handle Kit (wht) | 10 |
|
- | ||||
| 3 | 3-65447-001 | Bushing, Handle (Replaces: 68001728) | 10 |
|
$ 15.61 | ||||
| 4 | WPW10272364 | Screw (Replaces: 68001348) | 10 |
|
Immediately | $ 10.22 | |||
| 5 | 8210238 | Hinge Kit, Lower (Replaces: 68001704) | 10 |
|
$ 40.19 | ||||
| 5 | WP8204624 | Screw, Upper Hinge (Replaces: Y04637703) | 10 |
|
$ 15.73 | ||||
| 6 | 3-24898-007 | Vent Plug (Replaces: 68001331) | 10 |
|
$ 10.21 | ||||
| 7 | WP4-65151-004 | Gasket, Door (wht) (Replaces: 68001727) | 10 |
|
$ 344.65 | ||||
| 8 | 68001723 | Rail, Door Shelf | 10 |
|
- | ||||
| 9 | WP8204624 | Screw, Upper Hinge (Replaces: Y04637703) | 10 |
|
$ 15.73 | ||||
| 9 | 4390489 | Shim, Upper Hinge (Replaces: 68001230) | 10 |
|
$ 6.57 | ||||
| 9 | 2-81016-105 | Hinge Kit, Upper (Replaces: 68001605) | 10 |
|
$ 38.92 | ||||
| 10 | 68001465 | Bushing, Hinge | 10 |
|
- | ||||
| 11 | W10851331 | Washer, Hinge (Replaces: 68001316) | 10 |
|
$ 9.51 | ||||
| 12 | 4357145 | Lock (Replaces: 68001125) | 10 |
|
$ 25.01 | ||||
| 13 | 68001071 | Lock Body | 10 |
|
- | ||||
| 14 | 68001724 | Hook, Lock | 10 |
|
- | ||||
| 15 | 68001073 | Clip, Lock | 10 |
|
- | ||||
| 16 | 048417-04 | Washer, Lock | 10 |
|
- | ||||
| 17 | WP4159193 | Screw (Replaces: Y04689705) | 10 |
|
$ 4.56 | ||||
| 18 | 68001074 | Key, Lock | 10 |
|
- | ||||
| 19 | 68001739 | Nameplate (maytag) | 10 |
|
- | ||||
| 20 | 68001487 | Cover, Upper Hinge (wht) | 10 |
|
- |
