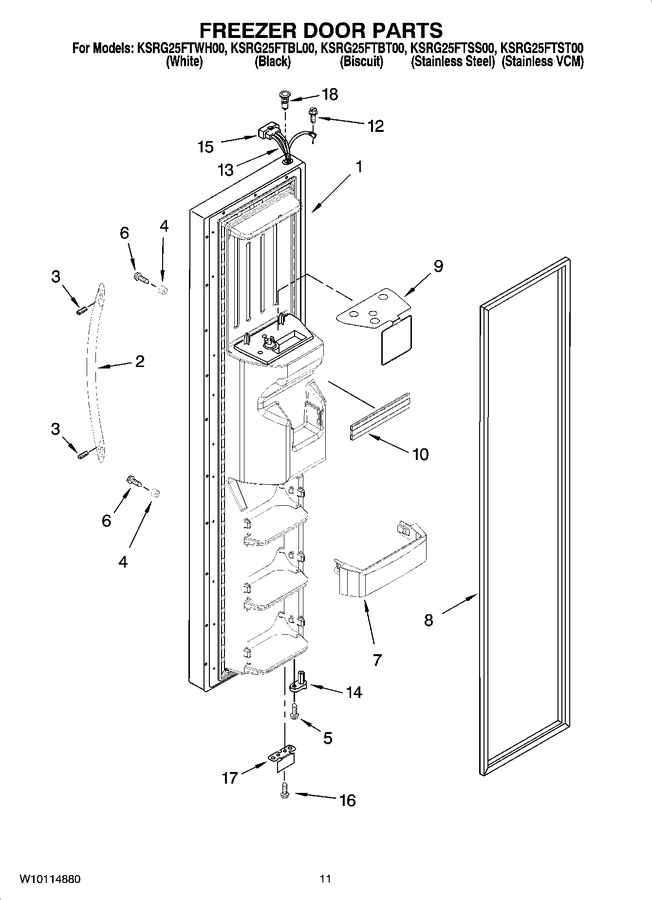

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2318964B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2318964T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2318968SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2318964LG		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	2318964W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2319727T		Handle (biscuit)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
2	2319727S		Handle (stainless Steel)				$ 133.96
3	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 7.88
3	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
4	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WP488163		Screw   (Replaces: 488208)				$ 7.54
7	2171070K		Shelf Bin (3)				$ 39.09
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
9	2304895		Safety Barrier		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
12	WP489128		Screw   (Replaces: 488500)				$ 10.88
13	2206178		Wire Harness				$ 36.28
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
17	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
18	2301049		Thimble-top (for Stainless Steel Model)				$ 75.42
18	WP2182181		Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models)   (Replaces: 2182181)				$ 7.76

    View Diagram in Separate Window       Print Part List
