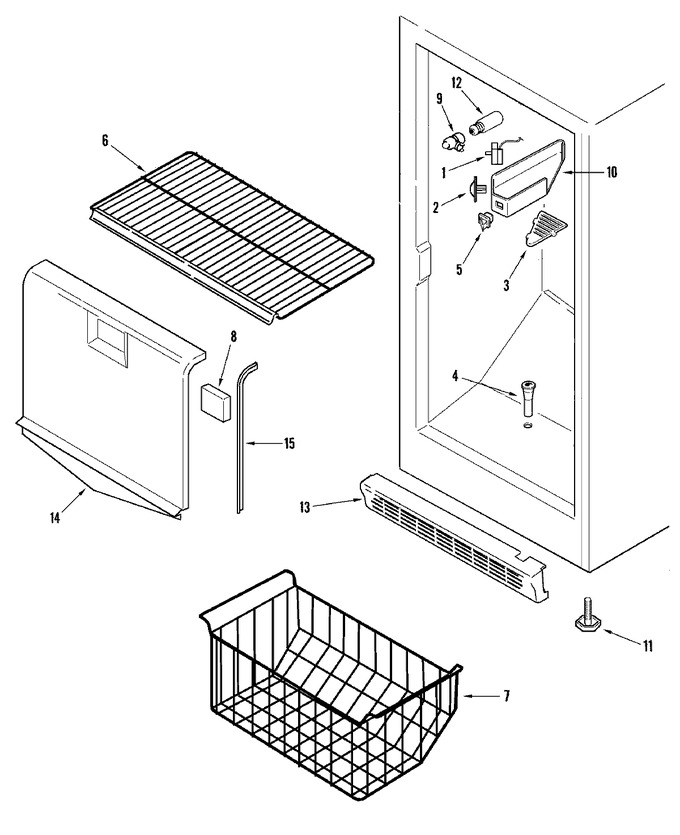

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4-83053-002 | Control, Temperature (Replaces: 68001720) | 10 |
|
$ 231.06 | ||||
| 2 | 3-82390-001 | Knob, Temp. Control (Replaces: 68001721) | 10 |
|
$ 27.09 | ||||
| 3 | 68001726 | Cover, Light (clear) | 10 |
|
- | ||||
| 4 | 68001103 | Plug, Drain | 10 |
|
- | ||||
| 4 | 68001472 | Drain Kit | 10 |
|
- | ||||
| 5 | W11384469 | Switch, Light (Replaces: 68001324) | 10 |
|
Immediately | $ 35.18 | |||
| 6 | 68001119 | Shelf, Wire | 10 |
|
- | ||||
| 6 | 68001118 | Shelf, Wire | 10 |
|
- | ||||
| 7 | 68001386 | Basket | 10 |
|
- | ||||
| 8 | 045580-01 | Seal, Air Block | 10 |
|
- | ||||
| 9 | WP3-82393-001 | Receptacle, Bulb (Replaces: 68001722) | 10 |
|
$ 101.46 | ||||
| 10 | 68001725 | Screw | 10 |
|
- | ||||
| 10 | 68001731 | Housing, Control | 10 |
|
- | ||||
| 11 | W11117769 | Leg Kit, Leveling (qty. 2) (Replaces: 68001326) | 10 |
|
Immediately | $ 17.43 | |||
| 12 | 68001733 | Screw | 10 |
|
- | ||||
| 12 | 68001732 | Shield, Light Bulb | 10 |
|
- | ||||
| 12 | W11679940 | Bulb, Light (Replaces: 68001557) | 10 |
|
Immediately | $ 10.67 | |||
| 13 | 68001713 | Kickplate Kit (wht) | 10 |
|
- | ||||
| 14 | WP489464 | Screw (Replaces: 68001474) | 10 |
|
Immediately | $ 7.54 | |||
| 14 | 68001506 | Cover Kit, Evaporator | 10 |
|
- | ||||
| 14 | WP3-24004-109 | Screw, Evap. Cover (phillips) (Replaces: 68001121) | 10 |
|
$ 8.23 | ||||
| 15 | 4390664 | Gasket, Evaporator Cover (lt) (Replaces: 68001503) | 10 |
|
$ 84.21 | ||||
| 15 | 4390663 | Gasket, Evaporator Cover (rt) (Replaces: 68001502) | 10 |
|
$ 225.86 | ||||
| 16 | WP3-80414-103 | Baffle, Air Duct (Replaces: Y04557501) | 10 |
|
$ 12.15 |
