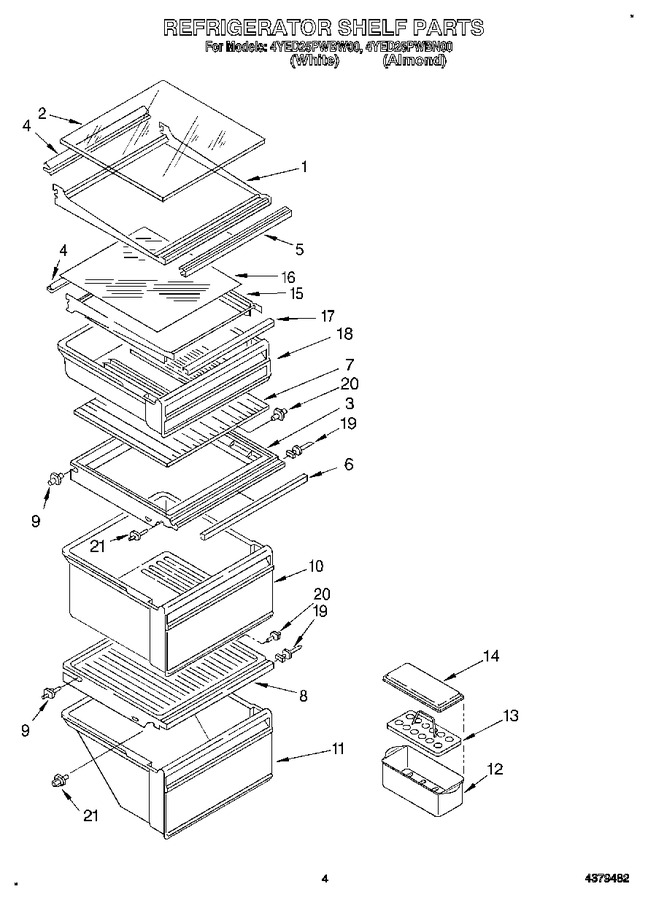

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118413		Shelf, Cantilever (3)		Appelez-nous	-
2	2148237		Glass, Shelf		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 2170659)				$ 181.71
4	2170621		Reflector, Shelf		Appelez-nous	-
5	2170597		Trim, Shelf		Appelez-nous	-
6	2170835		Trim, Crisper Cover		Appelez-nous	-
7	1114687		Glass, Crisper Cover				$ 88.24
8	WP2148298		Cover, Meat Pan   (Replaces: 2170965)				$ 174.59
9	1115290		Shelf Stud				$ 7.61
10	2174903		Pan, Crisper		Appelez-nous	-
11	2174902		Meat Pan		Appelez-nous	-
12	W10136387A		Egg Bin   (Replaces: 2174906)				$ 18.61
13	WP2177817		Egg Carrier   (Replaces: 2174922)				$ 17.89
14	2170969		Cover		Appelez-nous	-
15	2148122		Pan Shelf & Slide		Appelez-nous	-
16	2148300		Glass		Appelez-nous	-
17	2170594		Trim, Front		Appelez-nous	-
18	2174904		Snack Bin		Appelez-nous	-
19	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 31.34
20	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 31.34
21	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.44
