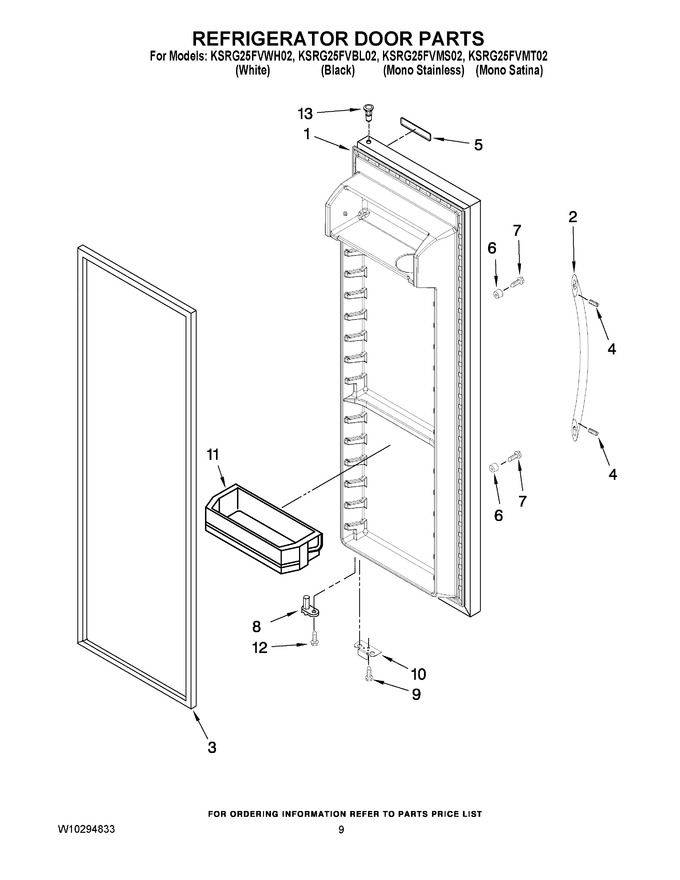

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2313299W		Refrigerator Door (includes No.3) (white)		Appelez-nous	-
1	2313299B		Refrigerator Door (includes No.3) (black)		Appelez-nous	-
1	W10257847		Refrigerator Door (includes No.3) (mono Stainless)		Appelez-nous	-
1	2301184LAP		Refrigerator Door (includes No.3) (mono Satina)		Appelez-nous	-
2	2319727S		Handle (stainless)				$ 133.96
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
3	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 335.39
3	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
3	2159075		Door Gasket, Magnetic (mist)   (Replaces: 2221302)			Immediately	$ 333.00
4	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
5	W10046610		Nameplate (stainless)				$ 33.40
5	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 73.70
5	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 69.98
6	WPW10170540		Stud   (Replaces: W10170540)			Immediately	$ 8.51
7	W10141596		Screw				$ 9.22
8	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
9	WP489483		Screw   (Replaces: 489420)				$ 11.41
10	W10185571		Bracket, Door Stop (black)		Appelez-nous	-
10	W10185570		Bracket, Door Stop Chrome				$ 11.59
11	W10169669		Door Bin (4)				$ 35.96
12	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15

    View Diagram in Separate Window       Print Part List
