SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor (series 10)


03 - Compressor (series 11)


04 - Controls


05 - Crisper Assembly


06 - Evap Fan/crisp Light/water Filter


07 - Evaporator/rollers/water Tank


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles


12 - Hinges


13 - Optional Ice Maker Kit-ic10s


14 - Refrigerator Door


15 - Refrigerator Shelves


16 - Supplemental Information


17 - Wiring Information

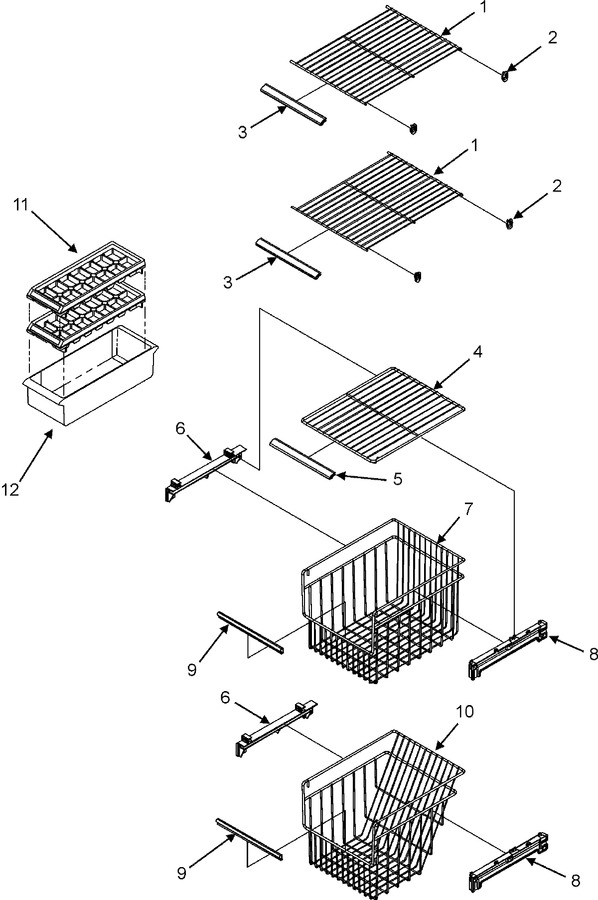

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004354		Shelf, Upr Frz.	10	Appelez-nous	-
2	C8973801		Support, Frz Shelf	10			$ 8.35
3	12314102		Trim, Basket/shelf	10	Appelez-nous	-
4	67004690		Shelf, Lwr Frz.	10	Appelez-nous	-
5	12314101		Trim, Basket/shelf	10	Appelez-nous	-
6	67004182		Rail, Basket (lt)	10	Appelez-nous	-
7	67004381		Basket-26 Up Fz	10	Appelez-nous	-
8	67004179		Rail, Basket (rt)	10	Appelez-nous	-
9	67004252		Trim, Fz Basket	10	Appelez-nous	-
10	67004251		Basket, Lwr Frz	10	Appelez-nous	-
11	WP841180A		Tray, Ice   (Replaces: 67001205)	10		Immediately	$ 45.56
12	10423131		Bin, Utility	10			$ 31.13

    View Diagram in Separate Window       Print Part List
