SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts, Optional Parts (not Included)

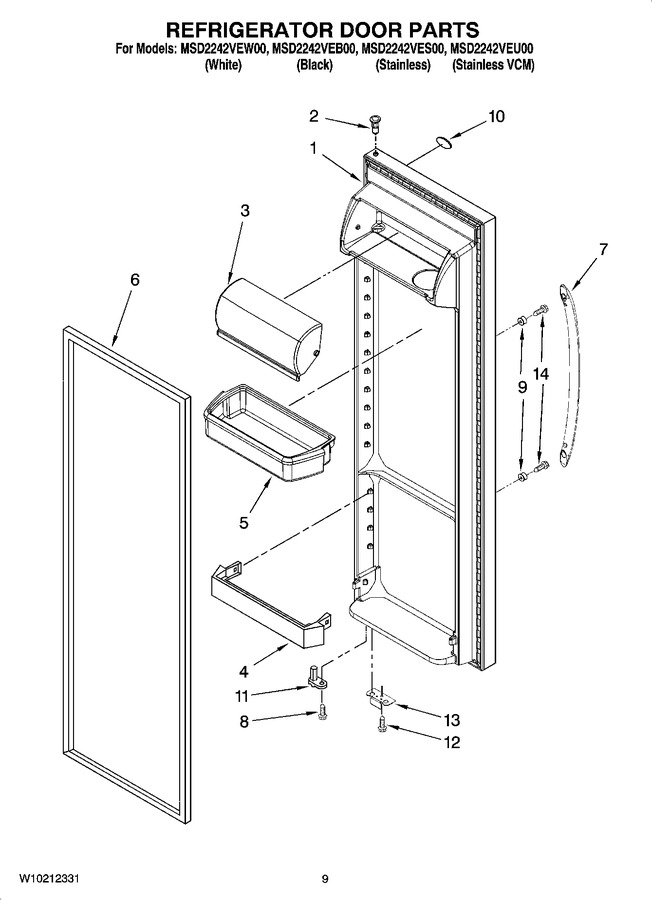

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10180334		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	W10180350		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10180352		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
1	W10180351		Refrigerator Door (includes Item 6) (stainless Vcm)		Appelez-nous	-
2	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2177962K		Trivet, Shelf   (Replaces: 2177962)				$ 85.14
5	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
6	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 333.19
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
7	WP12743701W		Handle (white)   (Replaces: 12743701W)				$ 180.34
7	WP12743701B		Handle (black)   (Replaces: 12743701B)				$ 190.87
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
9	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.51
10	2324038		Nameplate				$ 71.59
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
13	WP2206629B		Bracket, Door Stop (white)   (Replaces: 2206629)				$ 42.79
14	WP488163		Screw   (Replaces: 488208)				$ 7.92

    View Diagram in Separate Window       Print Part List
