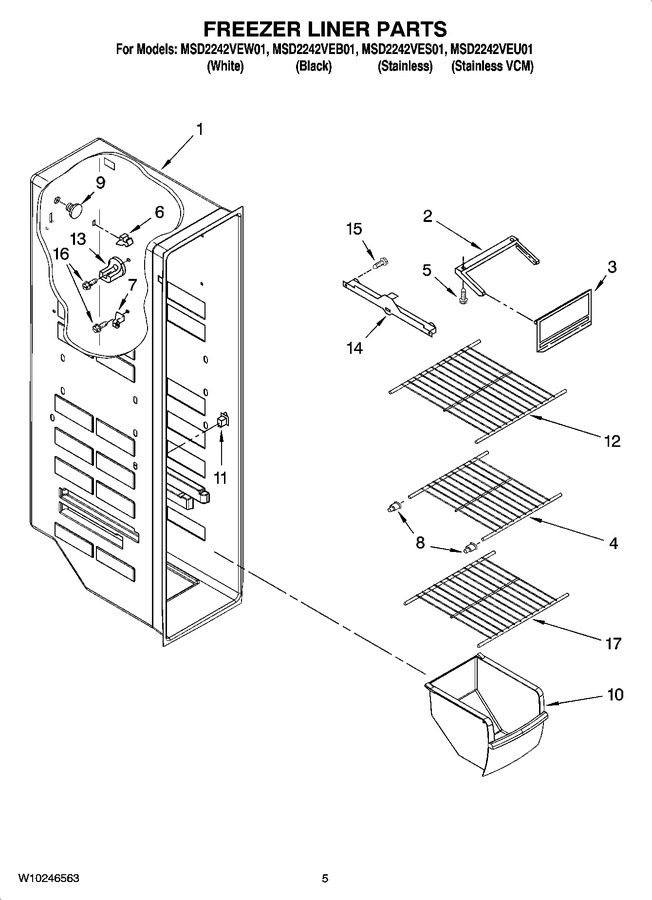

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 69.91
4	WPW10318953		Shelf, Wire   (Replaces: 2309634)			Immediately	$ 87.76
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2196206		Support, Stud (4)		Appelez-nous	-
8	WPW10130299		Cup, Shelf Mounting   (Replaces: W10130299)			Immediately	$ 14.70
9	940014		Hole Plug				$ 18.33
10	WP2309758		Freezer Bin   (Replaces: 2309758)			Immediately	$ 130.69
11	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
12	WPW10318952		Shelf, Wire   (Replaces: 2309633)			Immediately	$ 92.48
13	2196206		Stud, Rear		Appelez-nous	-
14	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
14	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
15	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
16	W10142289		Screw   (Replaces: 3400893)				$ 9.61
17	WPW10318951		Shelf, Wire   (Replaces: 2309632)				$ 85.76
