SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

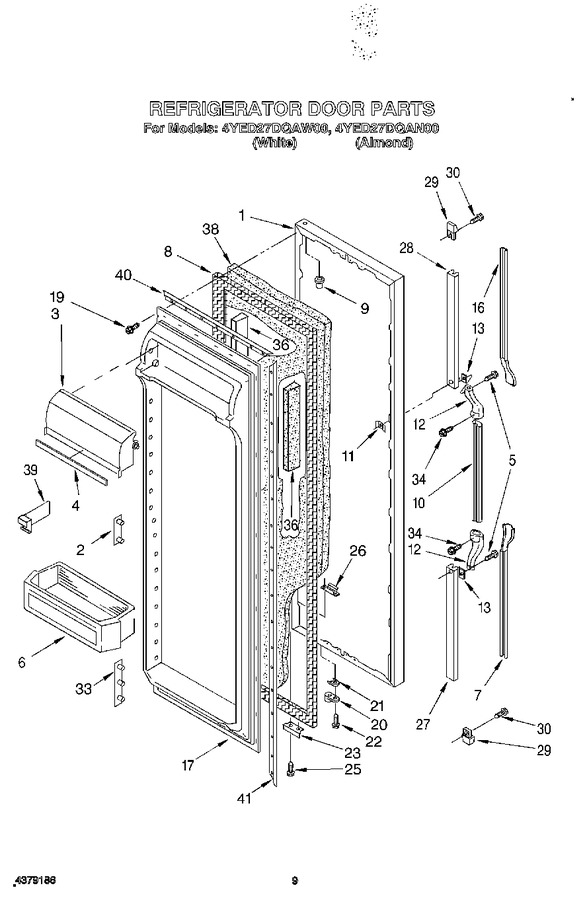

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1127321		Refrigerator, Door Panel (white)		Appelez-nous	-
1	1127324		Refrigerator, Door Panel (almond (also Order Item 38))		Appelez-nous	-
2	1118048		Pin Plate (4)		Appelez-nous	-
3	2148847		Door, Compartment		Appelez-nous	-
4	1118208		Trim, Compartment Door		Appelez-nous	-
5	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
6	2150134		Shelf Bin (2)		Appelez-nous	-
7	1119363		Insert, Handle (almond)		Appelez-nous	-
7	1119361		Insert, Handle (white)		Appelez-nous	-
8	1125929		Door Gasket, Magnetic		Appelez-nous	-
8	1127307		Door Gasket, Magnetic (for Almond Model)		Appelez-nous	-
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1124713		Handle, Center (white)		Appelez-nous	-
10	943079		Handle, Center (almond)		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	1119359		End Cap, Center Handle		Appelez-nous	-
13	935075		Shim		Appelez-nous	-
16	1119375		Insert, Handle (almond)		Appelez-nous	-
16	1119373		Insert, Handle (white)		Appelez-nous	-
17	1121447		Panel, Interior Door		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
20	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 27.36
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
22	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
23	2157611		Bracket, Door Stop		Appelez-nous	-
25	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
26	1123568		Tap Plate		Appelez-nous	-
27	1119360		Retainer, Insert (bottom)		Appelez-nous	-
28	1119372		Retainer, Insert		Appelez-nous	-
29	2156220		End Cap (2)		Appelez-nous	-
30	489075		Screw		Appelez-nous	-
33	1116986		Pin Plate (10)				$ 12.10
34	489022		Screw		Appelez-nous	-
36	1123622		Door Dike (2)		Appelez-nous	-
38	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
39	2152335		Divider (2)		Appelez-nous	-
40	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
41	1118302		Gasket Retainer, Side (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
