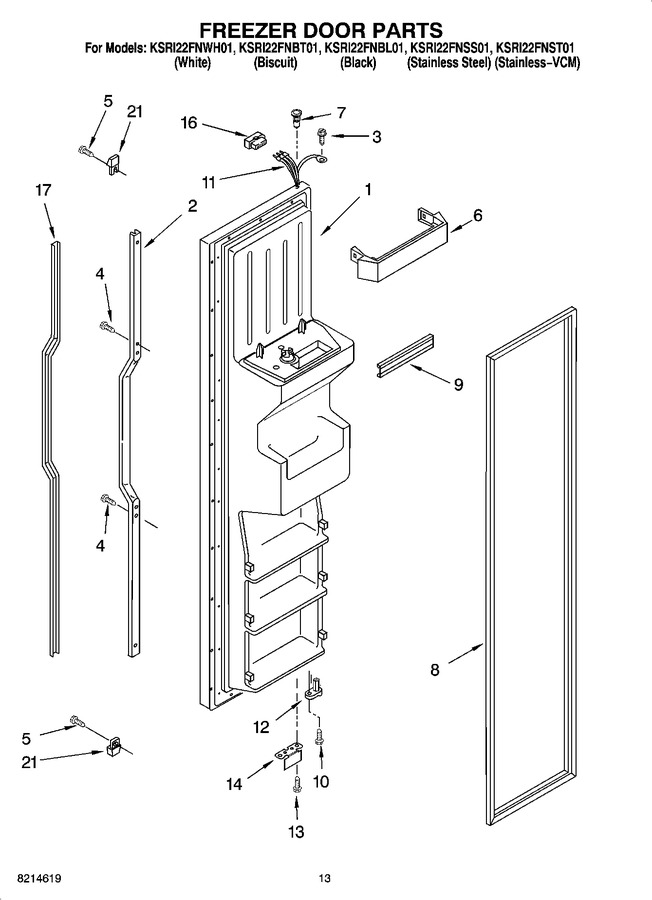

08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301215W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2301215T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2301215B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2301215SB		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2301215LB		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
2	2194776W		Retainer, Handle (white)		Appelez-nous	-
2	2194776T		Retainer, Handle (biscuit)		Appelez-nous	-
2	2194776B		Retainer, Handle (black)		Appelez-nous	-
3	WP3400906		Screw   (Replaces: 489000)				$ 7.84
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
6	2171071K		Trivet, Shelf (3)		Appelez-nous	-
7	2301049		Thimble, Top (for Stainless Steel & Stainless Vcm Models)				$ 75.42
7	WP2182181		Thimble, Top (for White, Black And Biscuit Models)   (Replaces: 2182181)				$ 7.76
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 310.39
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 23.11
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	2207213		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
17	2173830		Insert, Handle (white)		Appelez-nous	-
17	2173832		Insert, Handle (black)		Appelez-nous	-
17	2200434		Insert, Handle (biscuit)		Appelez-nous	-
21	2194778B		End Cap (black)		Appelez-nous	-
21	2194778W		End Cap (white)		Appelez-nous	-
21	2194778T		End Cap (biscuit)		Appelez-nous	-
