SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

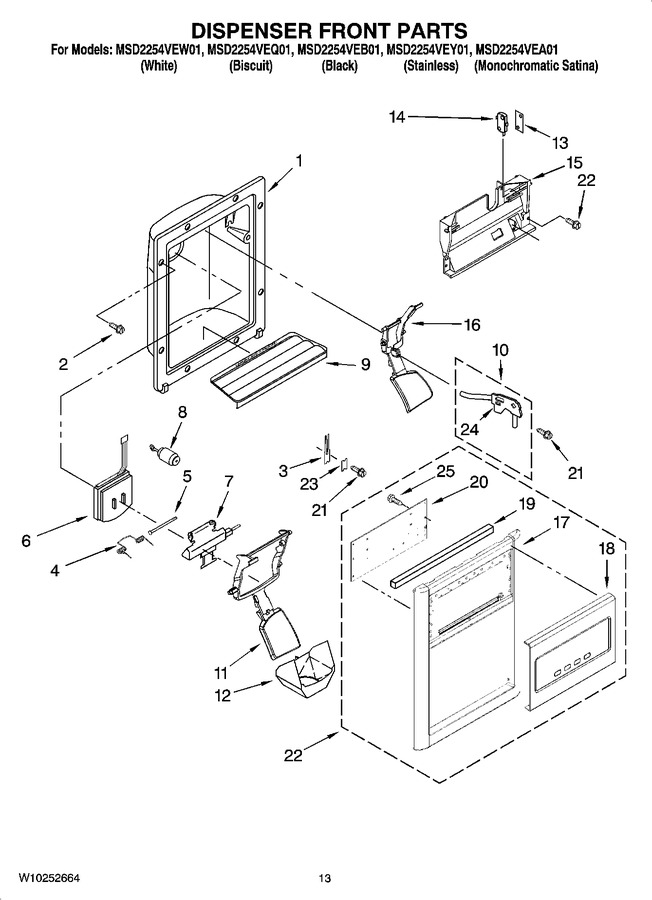

08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 24.69
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2206671W		Grille, Overflow (white)   (Replaces: 2206671W)				$ 68.73
9	W10171992		Grille, Overflow (nickel)				$ 88.69
9	WP2206671B		Grille, Overflow (black)   (Replaces: 2206671B)				$ 69.05
9	2206671T		Grille, Overflow (biscuit)				$ 27.69
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317)				$ 134.13
11	WP2203562W		Lever, Ice Dispenser (white)   (Replaces: 2203562W)				$ 107.66
11	2203562B		Lever, Ice Dispenser (black)				$ 85.92
11	2203562T		Lever, Ice Dispenser (biscuit)				$ 56.21
11	2203562AP		Lever, Ice Dispenser (apollo Grey)				$ 42.25
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	625834		Spacer, Switch (2)				$ 7.99
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 27.34
15	W10728484		Bracket, Control   (Replaces: W10206221)				$ 57.32
16	2203561AP		Lever, Water Dispenser (apollo Grey)		Appelez-nous	-
16	2203561T		Lever, Water Dispenser (biscuit)				$ 98.68
16	2203561W		Lever, Water Dispenser (white)				$ 95.98
16	2203561B		Lever, Water Dispenser (black)				$ 102.50
19	2305571		Gasket				$ 26.13
20	2321748		Control Board, Lcd				$ 224.49
21	WP3400906		Screw   (Replaces: 489000)				$ 7.84
22	W10170392		Front Cover Assembly (includes Items 17, 18, 19, & 20) (stainless)				$ 466.55
22	W10172005		Front Cover Assembly (includes Items 17, 18, 19, & 20) (nickel)		Appelez-nous	-
22	W10170389		Front Cover Assembly (includes Items 17, 18, 19, & 20) (black)				$ 466.29
22	W10170388		Front Cover Assembly (includes Items 17, 18, 19, & 20) (white)				$ 452.72
22	W10170390		Front Cover Assembly (includes Items 17, 18, 19, & 20) (biscuit)		Appelez-nous	-
23	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
24	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 15.60
25	2006254		Screw, Board   (Replaces: 489214)				$ 13.13

    View Diagram in Separate Window       Print Part List
