SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Air Flow Parts


04 - Freezer Liner Parts


05 - Refrigerator Shelf Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Parts Not Illustrated

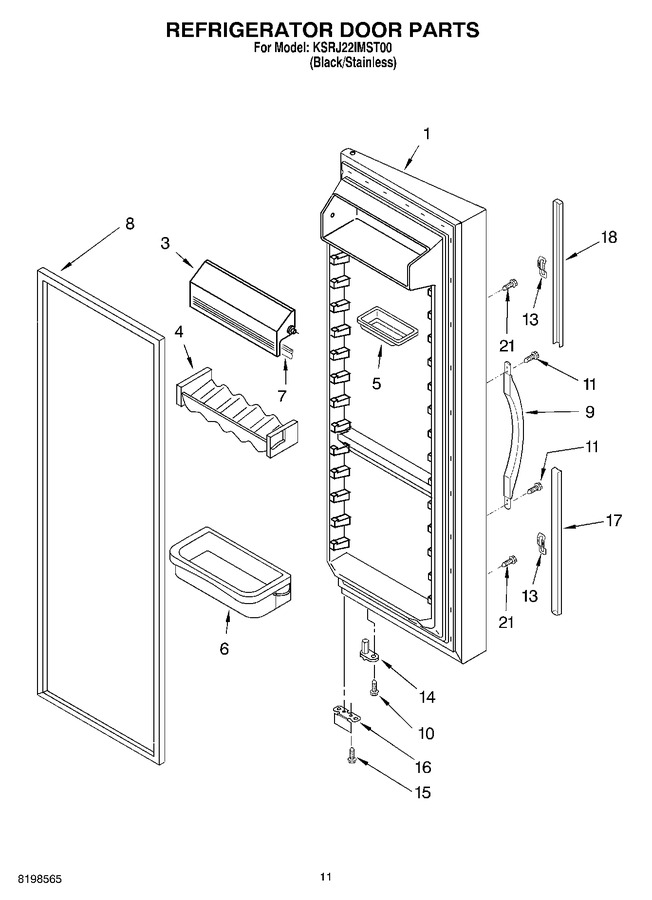

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214426LB		Refrigerator Door (includes Item 8) (black/stainless)		Appelez-nous	-
3	2218122		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Dish, Butter		Appelez-nous	-
6	2171063		Shelf Bin (3)		Appelez-nous	-
7	2159124		Gasket		Appelez-nous	-
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 335.58
9	WP2217185B		Handle (black)   (Replaces: 2217185B)				$ 190.14
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP489491		Screw   (Replaces: 489491)				$ 7.30
13	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2200082B		Bracket, Door Stop (black)				$ 42.44
17	2217186B		Extension, Bottom		Appelez-nous	-
18	2217191B		Extension, Top		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33

    View Diagram in Separate Window       Print Part List
