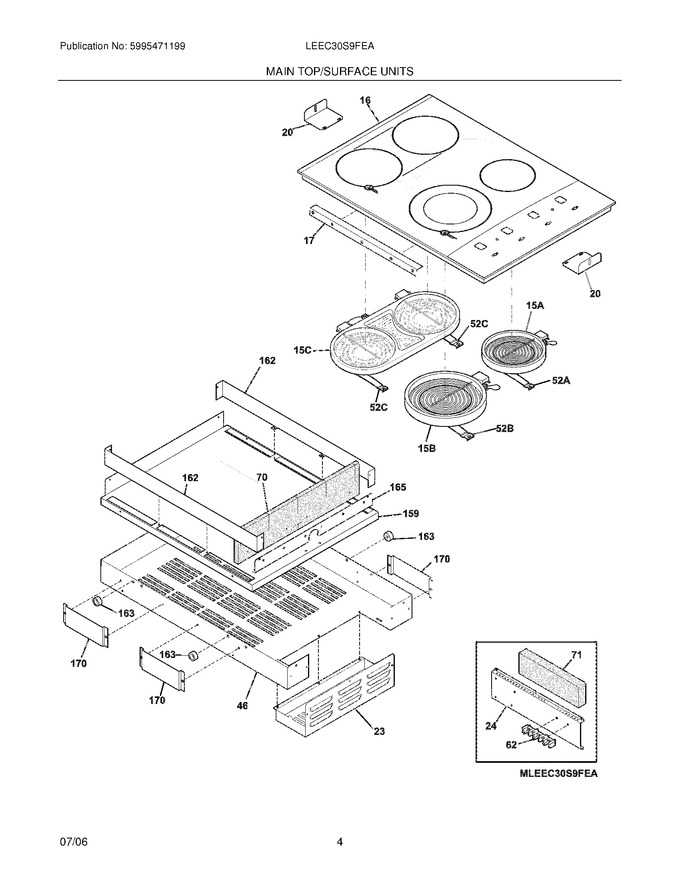

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318323303		Maintop Assembly,black ,w/trim		Appelez-nous	-
17	318340401		Bracket,holder		Appelez-nous	-
20	318121902		Bracket,retainer				$ 52.25
23	318194713		Panel,service ,black		Appelez-nous	-
24	318319202		Deflector,service Panel		Appelez-nous	-
46	318077253		Burner Box		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 29.66
70	318366901		Insulation,control Box		Appelez-nous	-
71	318366903		Insulation,2 X 7 X 1/2		Appelez-nous	-
159	318125131		Deflector		Appelez-nous	-
162	318161404		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 11.03
165	318161418		Deflector		Appelez-nous	-
170	318124911		Screen,thermal		Appelez-nous	-
52A	318122006		Spring,element Mtg ,small				$ 73.61
52B	318122010		Spring,element Mtg ,1000w/2500w				$ 69.46
52C	318122008		Spring-element Mtg				$ 100.89
F15A	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 214.20
F15B	318198931		Element,surface ,6/9 ,1200/2700w ,dual Radiant		Appelez-nous	-
F15C	318258201		Element,bridge ,1800/2600			Immediately	$ 533.93
NI	318199438		Harness,wiring ,main		Appelez-nous	-
NI	318052533		Ground Wire,w/terminal		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	134716700		Washer,flat ,(4)   (Replaces: 3201909)				$ 2.36
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 15.75
NI	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(3)		Appelez-nous	-
NI	318078550		Box & Wires Assy				$ 125.53
