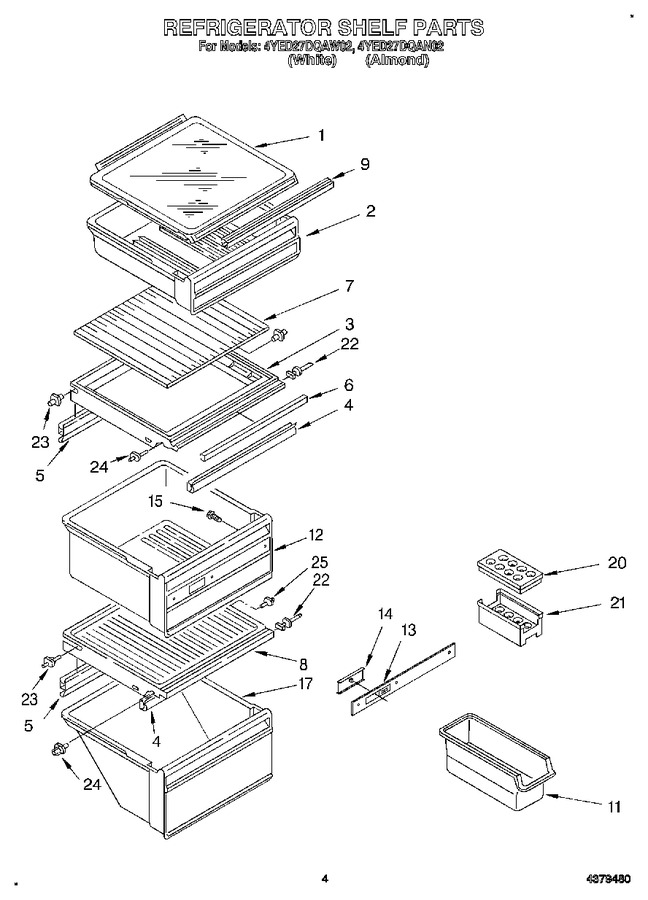

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2162564		Shelf Assembly, Glass Sliding (3)		Appelez-nous	-
2	2167177		Snack Bin		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 2148453)				$ 190.80
4	1115291		Gasket, Crisper (front)		Appelez-nous	-
5	1121385		Gasket, Crisper (rear)		Appelez-nous	-
6	2172714		Trim, Crisper Cover		Appelez-nous	-
7	1114687		Glass, Crisper Cover				$ 88.24
8	WP2148298		Cover, Meat Pan   (Replaces: 2170555)				$ 183.32
9	2162563		Trim		Appelez-nous	-
11	WP982704		Container   (Replaces: 1127196)				$ 32.55
12	2162711		Pan, Crisper		Appelez-nous	-
13	2167169		Front, Crisper Pan		Appelez-nous	-
14	2148524		Slide, Humidity Control		Appelez-nous	-
15	489162		Screw		Appelez-nous	-
17	2167170		Meat Pan		Appelez-nous	-
20	1107388		Egg Container, Top		Appelez-nous	-
21	1107384		Egg Container, Bottom		Appelez-nous	-
22	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 32.85
23	1115290		Shelf Stud				$ 7.61
24	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.96
25	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85
