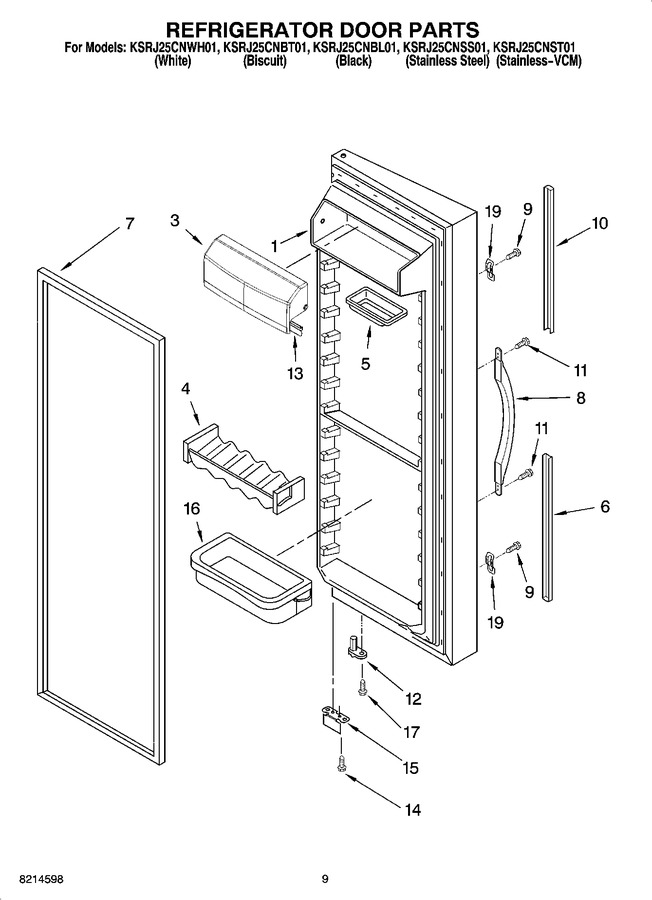

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2214413LB | Refrigerator Door (includes 7) (stainless-vcm) |
|
- | |||||
| 1 | 2214413W | Refrigerator Door (includes 7) (white) |
|
- | |||||
| 1 | 2214413T | Refrigerator Door (includes 7) (biscuit) |
|
- | |||||
| 1 | 2214413B | Refrigerator Door (includes 7) (black) |
|
- | |||||
| 1 | 2214413SB | Refrigerator Door (includes 7) (stainless Steel) |
|
- | |||||
| 3 | 2301486 | Door, Compartment |
|
- | |||||
| 4 | 2193409K | Beverage Holder |
|
- | |||||
| 5 | 2165792K | Butter Dish |
|
$ 9.72 | |||||
| 6 | 2217186T | Trim, Door-bottom (biscuit) |
|
- | |||||
| 6 | 2217186B | Trim, Door-bottom (black) |
|
- | |||||
| 6 | 2217186W | Trim, Door-bottom (white) |
|
- | |||||
| 7 | 2159075 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221302) |
|
Immediately | $ 317.14 | ||||
| 7 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 251.49 | |||||
| 8 | 2217185W | Handle (white) |
|
- | |||||
| 8 | 2217185T | Handle (biscuit) |
|
- | |||||
| 8 | WP2217185B | Handle (black) (Replaces: 2217185B) |
|
$ 181.09 | |||||
| 9 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 9.84 | |||||
| 10 | 2217187W | Trim, Door-top (white) |
|
- | |||||
| 10 | 2217187B | Trim, Door-top (black) |
|
- | |||||
| 10 | 2217187T | Trim, Door-top (biscuit) |
|
- | |||||
| 11 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 13 | 2159124 | Gasket |
|
- | |||||
| 14 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 15 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 | |||||
| 15 | 2200082B | Bracket, Door Stop (black) |
|
$ 42.44 | |||||
| 16 | 2205821K | Shelf Bin (4) |
|
- | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 19 | WP2195327 | Clip (Replaces: 2195327) |
|
$ 7.40 |
