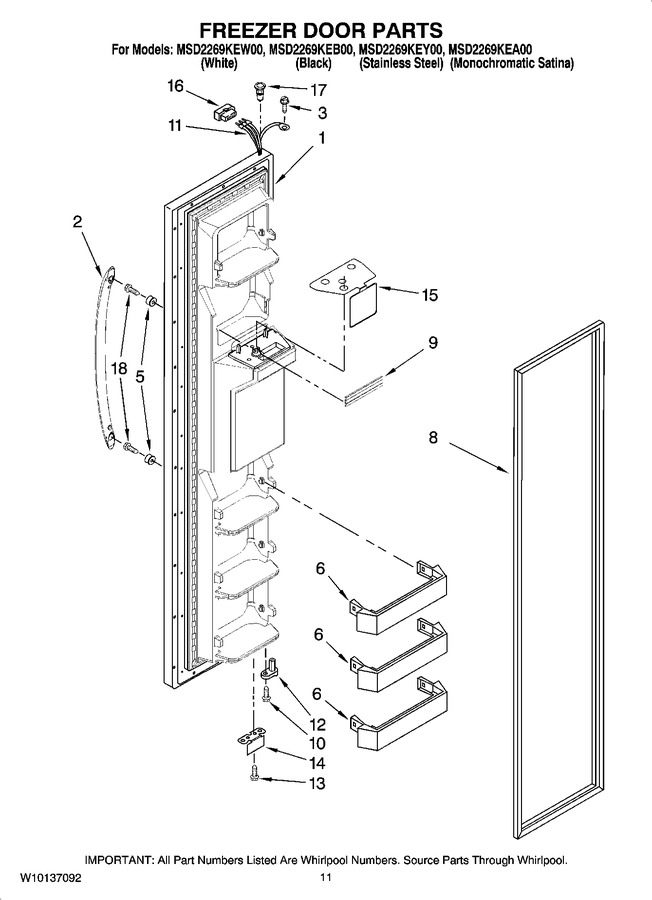

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10120333 | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10120334 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 1 | W10120335 | Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Satina) |
|
- | |||||
| 1 | W10120332 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | 13004701W | Handle (white) (Replaces: 67006114) |
|
$ 184.73 | |||||
| 2 | 67006115 | Handle (black) |
|
- | |||||
| 2 | W11690159 | Handle (stainless) (Replaces: 67006391) |
|
$ 165.49 | |||||
| 3 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 5 | WPW10170540 | Stud, Handle (Replaces: 2326259) |
|
Immediately | $ 8.51 | ||||
| 6 | WP2156021 | Trivet, Fc (Replaces: 2156021K) |
|
$ 63.27 | |||||
| 8 | 2159072 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221301) |
|
$ 308.19 | |||||
| 8 | 2159080 | Door Gasket, Magnetic (black) (Replaces: 2221312) |
|
$ 310.39 | |||||
| 8 | W10136733 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2326337) |
|
$ 341.89 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2212375) |
|
Immediately | $ 23.11 | ||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 11 | W10683539 | Wire Harness (Replaces: 2187725) |
|
$ 36.53 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 14 | 2200082 | Bracket, Door Stop (zinc) |
|
$ 5.83 | |||||
| 14 | 2200082B | Bracket, Door Stop (black) |
|
$ 42.44 | |||||
| 15 | 2304896 | Safety Barrier |
|
- | |||||
| 16 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 23.65 | |||||
| 17 | WP2182181 | Thimble-top (Replaces: 2200086) |
|
$ 7.76 | |||||
| 18 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 |
