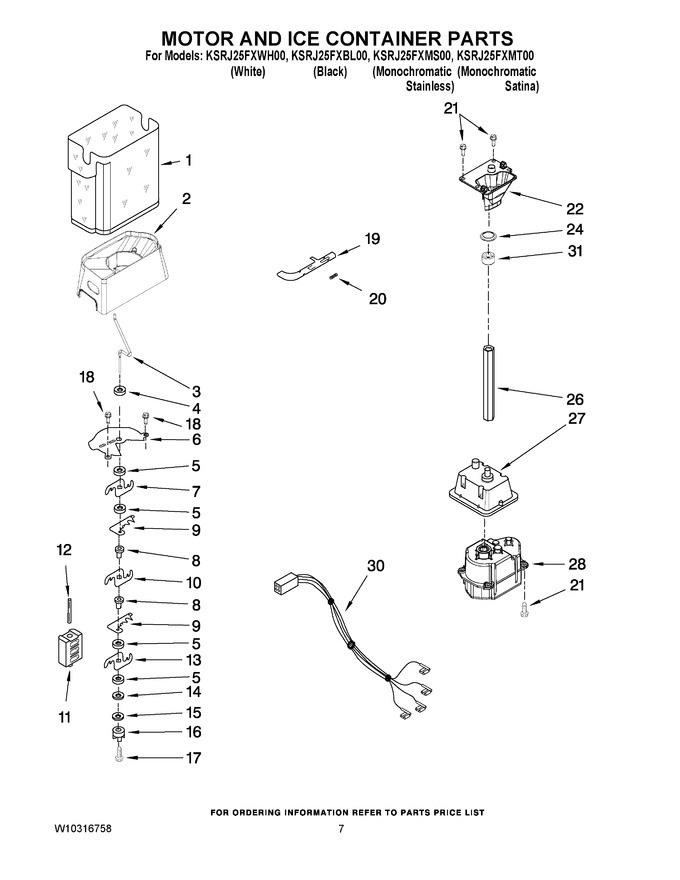

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10286861 | Ice Bin |
|
- | |||||
| 2 | W10286870 | Crusher Bin |
|
- | |||||
| 3 | W10166869 | Auger |
|
- | |||||
| 4 | 2258220 | Washer |
|
$ 8.02 | |||||
| 5 | W11032808 | Spacer, Flat (4) (Replaces: W10189658) |
|
$ 10.12 | |||||
| 6 | 2317248 | Cover, Crusher |
|
- | |||||
| 7 | W10278731 | Blade, Rotary |
|
$ 86.54 | |||||
| 8 | W10189661 | Spacer, Step (2) |
|
$ 50.93 | |||||
| 9 | 2198601 | Blade, Fixed |
|
- | |||||
| 10 | W10278732 | Blade, Rotary |
|
$ 86.67 | |||||
| 11 | W10178238 | Block, Blade |
|
$ 10.91 | |||||
| 12 | W10166878 | Roll Pin |
|
$ 12.20 | |||||
| 13 | W10278733 | Blade, Rotary |
|
$ 86.67 | |||||
| 14 | 489235 | Washer, Plain |
|
$ 8.05 | |||||
| 15 | WP2198661 | Washer, Coupling (Replaces: 2198661) |
|
$ 10.90 | |||||
| 16 | W11629923 | Coupling (Replaces: 2188918) |
|
$ 33.63 | |||||
| 17 | WP8281164 | Screw (Replaces: 8281164) |
|
$ 10.79 | |||||
| 18 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 19 | W10166863 | Latch, Bin |
|
- | |||||
| 20 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.19 | |||||
| 21 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 22 | W10286869 | Plate, Mtg |
|
- | |||||
| 24 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.97 | ||||
| 26 | W10317613 | Drive Shaft |
|
- | |||||
| 27 | W11678273 | Enclosure, Motor (Replaces: W10258546) |
|
Immediately | $ 73.35 | ||||
| 28 | W10822606 | Dispenser, Motor (Replaces: W10215646) |
|
Immediately | $ 156.54 | ||||
| 30 | W10295559 | Wire Harness, Idi Motor |
|
- | |||||
| 31 | W10317615 | Sleeve, Coupling |
|
- | |||||
| 100 | W10286864 | Ice Container (complete) |
|
- |
