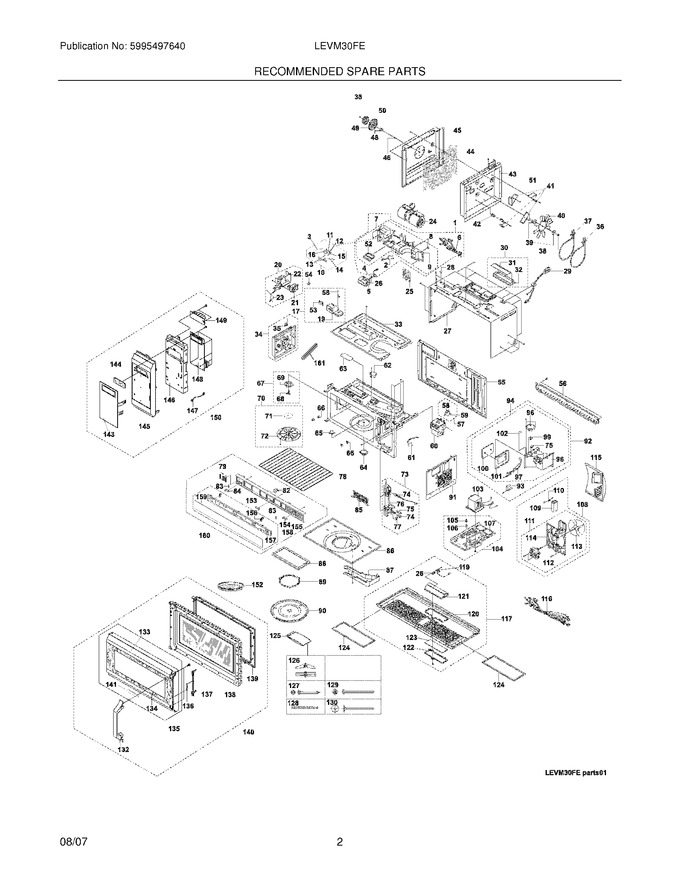

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304457596 | Duct Assembly,air ,upper |
|
- | |||||
| 2 | 5304457597 | Clamp,cable |
|
- | |||||
| 5 | 5304457790 | Bracket,lamp Housing |
|
- | |||||
| 7 | 5304457601 | Duct,air ,upper ,with Bracket |
|
- | |||||
| 8 | 5304457602 | Nut,mounting ,duct |
|
- | |||||
| 9 | 5304457603 | Duct,air ,upper |
|
- | |||||
| 15 | 5304457609 | Bracket,cam Plate |
|
- | |||||
| 19 | 5304457612 | Duct,exhaust |
|
- | |||||
| 22 | 5304457791 | Guide,heater Air ,duct |
|
- | |||||
| 26 | 5304457617 | Lamp,halogen |
|
$ 46.31 | |||||
| 27 | 5304457618 | Cabinet,outer Casing |
|
- | |||||
| 28 | 5304456122 | Nut,holder Assembly ,(2) |
|
- | |||||
| 30 | 5304457619 | Damper Assembly,hood |
|
- | |||||
| 31 | 5304457620 | Cover,damper |
|
- | |||||
| 32 | 5304456126 | Damper,main |
|
- | |||||
| 33 | 5304457621 | Cover,top Panel ,insulator |
|
- | |||||
| 38 | 5304457626 | Nut,hex Flange |
|
- | |||||
| 39 | 5304457627 | Washer |
|
- | |||||
| 41 | 5304457629 | Bracket,air Guide |
|
- | |||||
| 42 | 5304457630 | Holder,heater |
|
- | |||||
| 43 | 5304457792 | Bracket,fan Housing |
|
- | |||||
| 44 | 5304457631 | Insulator,fan Housing |
|
- | |||||
| 45 | 5304457632 | Cover,fan Housing |
|
- | |||||
| 46 | 5304457633 | Shaft,fan |
|
- | |||||
| 48 | 5304457634 | Bearing,fan |
|
- | |||||
| 49 | 5304457635 | Holder,fan Bearing |
|
- | |||||
| 51 | 5304457637 | Bracket,air Guide |
|
- | |||||
| 52 | 5304457638 | Bracket,upper Duct |
|
- | |||||
| 53 | 5304457639 | Holder,sensor |
|
- | |||||
| 55 | 5304457640 | Panel,back |
|
- | |||||
| 56 | 5304456129 | Plate,mounting |
|
- | |||||
| 59 | 5304457793 | Bracket,mounting ,thermostat |
|
- | |||||
| 63 | 5304457643 | Lens,lamp Cover ,glass |
|
- | |||||
| 65 | 5304457644 | Coupler,motor/turntable |
|
$ 12.33 | |||||
| 66 | 5304457645 | Support,rack |
|
- | |||||
| 68 | 5304456143 | Holder,stirrer |
|
- | |||||
| 70 | 5304457648 | Cover Assembly,stirrer |
|
- | |||||
| 71 | 5304457649 | Support,stirrer |
|
- | |||||
| 72 | 5304457650 | Cover,stirrer |
|
- | |||||
| 73 | 5304457651 | Latch Body Assembly |
|
- | |||||
| 76 | 5304457652 | Latch Body |
|
- | |||||
| 77 | 5304456099 | Lever,switch ,lower |
|
- | |||||
| 78 | 5304457653 | Rack,wire |
|
- | |||||
| 79 | 5304457654 | Bracket,grille |
|
- | |||||
| 82 | 5304457655 | Clip,ground ,grille |
|
- | |||||
| 83 | 5304457656 | Spring,louver |
|
- | |||||
| 84 | 5304457657 | Hinge,grille ,left |
|
- | |||||
| 85 | 5304457658 | Cover,front |
|
- | |||||
| 86 | 5304457659 | Cover,lower Plate ,insulator |
|
- | |||||
| 87 | 5304457660 | Air Guide,bottom |
|
- | |||||
| 89 | 5304457661 | Guide,turntable ,with Rollers |
|
$ 70.87 | |||||
| 90 | 5304456198 | Tray,turntable |
|
$ 127.39 | |||||
| 91 | 5304457662 | Cover,right Side ,insulator |
|
- | |||||
| 98 | 5304457667 | Air Guide |
|
- | |||||
| 100 | 5304457669 | Damper,gasket |
|
- | |||||
| 101 | 5304457794 | Damper,door ,swing |
|
- | |||||
| 102 | 5304457795 | Rod,damper |
|
- | |||||
| 104 | 5304457671 | Base Assembly,w/thermostats |
|
- | |||||
| 105 | 5304456112 | Thermostat,lh ,lower |
|
$ 43.65 | |||||
| 107 | 5304457672 | Plate,base |
|
- | |||||
| 113 | 5304456213 | Fan Blade |
|
- | |||||
| 114 | 5304457676 | Cover,fan Motor |
|
- | |||||
| 115 | 5304457677 | Bracket,rear |
|
- | |||||
| 120 | 5304457681 | Base Plate,panel ,bottom |
|
- | |||||
| 121 | 5304457682 | Bracket,lamp Housing ,bottom |
|
- | |||||
| 122 | 5304457683 | Frame,lens Holder |
|
- | |||||
| 123 | 5304457684 | Lens,cooktop Lamp ,glass |
|
- | |||||
| 125 | 5304457685 | Hardware,installation ,kit |
|
$ 64.20 | |||||
| 126 | 5304456134 | Nut,toggle ,(3) |
|
- | |||||
| 127 | 5304456135 | Screw,machine ,inch |
|
- | |||||
| 128 | 5304456137 | Grommet,(2) |
|
- | |||||
| 129 | 5304456136 | Bolt,toggle ,(3) |
|
- | |||||
| 130 | 5304456138 | Bolt,flat ,(3) |
|
$ 10.08 | |||||
| 132 | 5304457686 | Handle,door |
|
- | |||||
| 133 | 5304457687 | Frame,outer Door |
|
- | |||||
| 134 | 5304457688 | Screen,door ,glass ,front |
|
- | |||||
| 135 | 5304457689 | Panel,outer Door ,assembly |
|
- | |||||
| 136 | 5304456102 | Spring,latch |
|
- | |||||
| 137 | 5304457690 | Latch,door |
|
$ 45.55 | |||||
| 138 | 5304457691 | Panel,inner Door |
|
- | |||||
| 139 | 5304457692 | Frame,inner Door ,choke Cover |
|
- | |||||
| 140 | 5304457693 | Door,complete Assy ,with Handle |
|
- | |||||
| 141 | 5304457694 | Nameplate,elements |
|
- | |||||
| 144 | 5304456073 | Window,display |
|
- | |||||
| 145 | 5304457696 | Frame,control Panel |
|
- | |||||
| 146 | 5304457697 | Bracket,control Mount |
|
- | |||||
| 148 | 5304457699 | Housing,control Board |
|
- | |||||
| 152 | 5304457702 | Tray,turntable ,convection |
|
- | |||||
| 153 | 5304457703 | Hinge,grille ,middle |
|
- | |||||
| 154 | 5304457704 | Hinge,grille ,right |
|
- | |||||
| 155 | 5304457705 | Grille,front |
|
- | |||||
| 156 | 5304457706 | Bracket,barrier ,spacer |
|
- | |||||
| 157 | 5304457707 | Bracket,cover Mount ,grille |
|
- | |||||
| 158 | 5304457708 | Cover Assembly,grille Front |
|
- | |||||
| 159 | 5304457709 | Panel,grille Cover ,front |
|
- | |||||
| 160 | 5304457710 | Grille Assembly,front |
|
- | |||||
| F10 | 5304457604 | Cam Assembly,louver |
|
$ 50.98 | |||||
| F103 | 5304457670 | Transformer,high Voltage |
|
$ 257.51 | |||||
| F106 | 5304456139 | Thermostat,rh ,lower |
|
- | |||||
| F108 | 5304457673 | Fan/motor Assembly,complete |
|
- | |||||
| F109 | 5304456177 | Capacitor,oil |
|
$ 83.24 | |||||
| F11 | 5304457605 | Switch,micro |
|
$ 43.85 | |||||
| F110 | 5304456178 | Diode,high Voltage |
|
$ 67.57 | |||||
| F111 | 5304457674 | Motor Assembly,fan ,w/cover & Blade |
|
- | |||||
| F112 | 5304457675 | Motor,fan |
|
$ 113.87 | |||||
| F116 | 5304457678 | Wiring Harness,a |
|
- | |||||
| F117 | 5304457679 | Base Assembly,with Lamp |
|
- | |||||
| F119 | 5304457680 | Holder,lamp Socket |
|
- | |||||
| F12 | 5304457606 | Switch,micro |
|
$ 35.76 | |||||
| F124 | 5304456090 | Filter,air |
|
- | |||||
| F13 | 5304457607 | Motor,drive ,louver Cam |
|
$ 87.78 | |||||
| F14 | 5304457608 | Wiring Harness,louver Cam |
|
- | |||||
| F143 | 5304457695 | Switch,touch Control ,membrane |
|
- | |||||
| F147 | 5304457698 | Wiring Harness,controls |
|
- | |||||
| F149 | 5304457700 | Control Board,printed Circuit |
|
- | |||||
| F150 | 5304457701 | Control Assembly,complete |
|
- | |||||
| F16 | 5304457610 | Cam,louver |
|
$ 16.61 | |||||
| F161 | 5304463494 | Belt,convection Fan ,rubber |
|
- | |||||
| F17 | 5304457611 | Duct Assembly,exhaust |
|
- | |||||
| F20 | 5304457613 | Guide Assembly,heater Air |
|
- | |||||
| F21 | 5304457614 | Motor,convection |
|
- | |||||
| F23 | 5304457615 | Pulley,fan Motor |
|
- | |||||
| F24 | 5304457616 | Motor,ventilation |
|
$ 147.83 | |||||
| F25 | 5304456082 | Filter,noise |
|
- | |||||
| F29 | 5304456128 | Cord,power Assembly |
|
- | |||||
| F3 | 5304457598 | Wire,cbf Lead |
|
- | |||||
| F34 | 5304457622 | Housing,fan ,with Thermostat |
|
- | |||||
| F35 | 5304457623 | Thermostat |
|
$ 36.42 | |||||
| F36 | 5304457624 | Heater,convection ,900 Watt |
|
- | |||||
| F37 | 5304457625 | Heater,convection ,700 Watt |
|
- | |||||
| F4 | 5304457599 | Holder,lamp Socket |
|
- | |||||
| F40 | 5304457628 | Fan Blade,convection |
|
- | |||||
| F50 | 5304457636 | Pulley,fan |
|
- | |||||
| F54 | 5304456185 | Sensor,gas |
|
$ 59.64 | |||||
| F57 | 5304457641 | Thermostat Assembly |
|
$ 39.95 | |||||
| F58 | 5304456106 | Thermostat |
|
$ 46.62 | |||||
| F6 | 5304457600 | Wiring Harness,c ,upper Duct |
|
- | |||||
| F60 | 5304456105 | Magnetron Assembly |
|
$ 266.23 | |||||
| F61 | 5304457642 | Sensor,thermistor |
|
$ 23.94 | |||||
| F62 | 5304456184 | Motor,synchronous |
|
- | |||||
| F64 | 5304456175 | Motor,drive |
|
- | |||||
| F67 | 5304457646 | Stirrer Assembly |
|
- | |||||
| F69 | 5304457647 | Fan Blade,stirrer |
|
- | |||||
| F74 | 5304456101 | Switch,micro |
|
- | |||||
| F75 | 5304456100 | Switch,micro ,(2) |
|
- | |||||
| F88 | 5304456397 | Filter,air ,charcoal |
|
$ 93.28 | |||||
| F92 | 5304457663 | Air Guide Assembly,w/capacitor |
|
$ 33.57 | |||||
| F93 | 5304456068 | Capacitor,motor |
|
- | |||||
| F94 | 5304457664 | Air Guide Assembly |
|
- | |||||
| F96 | 5304457665 | Motor,synchronous |
|
- | |||||
| F97 | 5304457666 | Wiring Harness,b |
|
- | |||||
| F99 | 5304457668 | Cam,motor |
|
- | |||||
| NI | 316488511 | Template,installation ,top Cab |
|
- | |||||
| NI | 316488510 | Template,installation ,wall |
|
- |
