Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10202773 Refrigerator Door (includes Item 6) (white) Appelez-nous -
1 LW10202775 Refrigerator Door (includes Item 6) (biscuit)   (Replaces: W10202775) Appelez-nous -
1 LW10202774 Refrigerator Door (includes Item 6) (black)   (Replaces: W10202774) Special Order $ 1,138.49

1 LW10202777 Refrigerator Door (includes Item 6) (stainless)   (Replaces: W10202777) Special Order $ 604.73

1 W10202776 Refrigerator Door (includes Item 6) (satina) Appelez-nous -
2 WP2256101 Door, Compartment   (Replaces: 2256101) In-Stock Immediately $ 89.42

3 W10184500 Screw Special Order $ 36.30

4 WPW10321304 Door Bin (3)   (Replaces: 2304235) In-Stock Immediately $ 44.73

5 WP2255411 Clip   (Replaces: 2255411) Special Order $ 36.55

6 W10136732 Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327161) In-Stock Immediately $ 361.20

6 2159081 Door Gasket, Magnetic (black)   (Replaces: 2309653) Special Order $ 335.58

6 2159073 Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600) Special Order $ 333.19

7 WPW10170750 Handle (black)   (Replaces: W10170746) Special Order $ 309.83

7 W10170752 Handle (biscuit)   (Replaces: W10170748) Appelez-nous -
7 WPW10170739 Handle (stainless & Satina)   (Replaces: W10170739) Special Order $ 363.92

7 WPW10170749 Handle (white)   (Replaces: W10170745) Special Order $ 314.22

8 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 8.15

9 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

10 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

11 WP2206629B Bracket, Door Stop (black)   (Replaces: 2206629B) Special Order $ 42.79

11 WP2206629B Bracket, Door Stop (chrome)   (Replaces: 2206629) Special Order $ 42.79

12 WPW10170766 Nameplate   (Replaces: W10170766) In-Stock Immediately $ 70.50

13 WP2309941 Trivet, Shelf   (Replaces: 2309941) In-Stock Immediately $ 76.32

14 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

15 WPW10288153 Screw   (Replaces: W10129563) In-Stock Immediately $ 9.65


    View Diagram in Separate Window     Print Icon   Print Part List

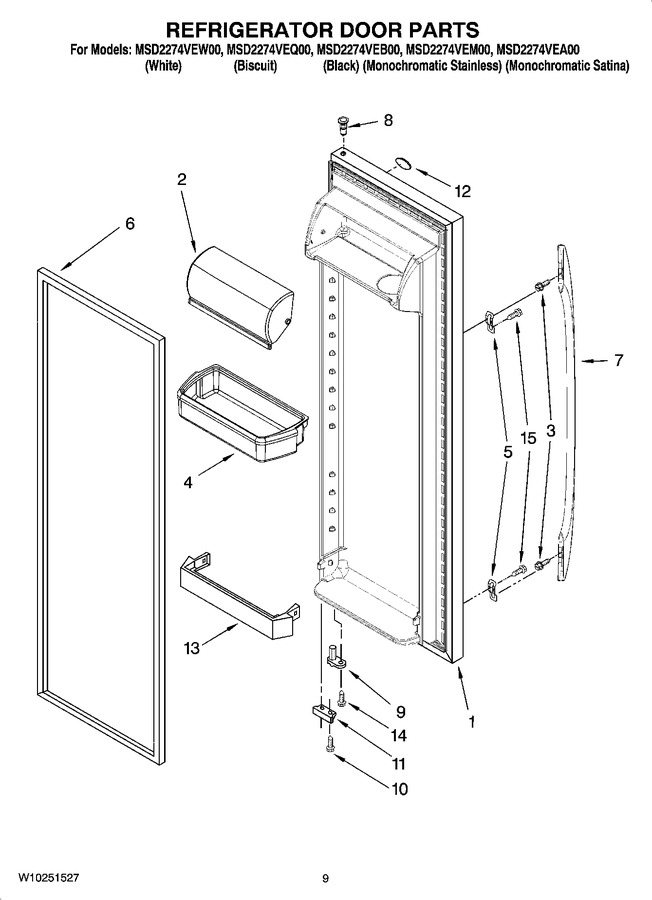

Diagram for MSD2274VEW00
