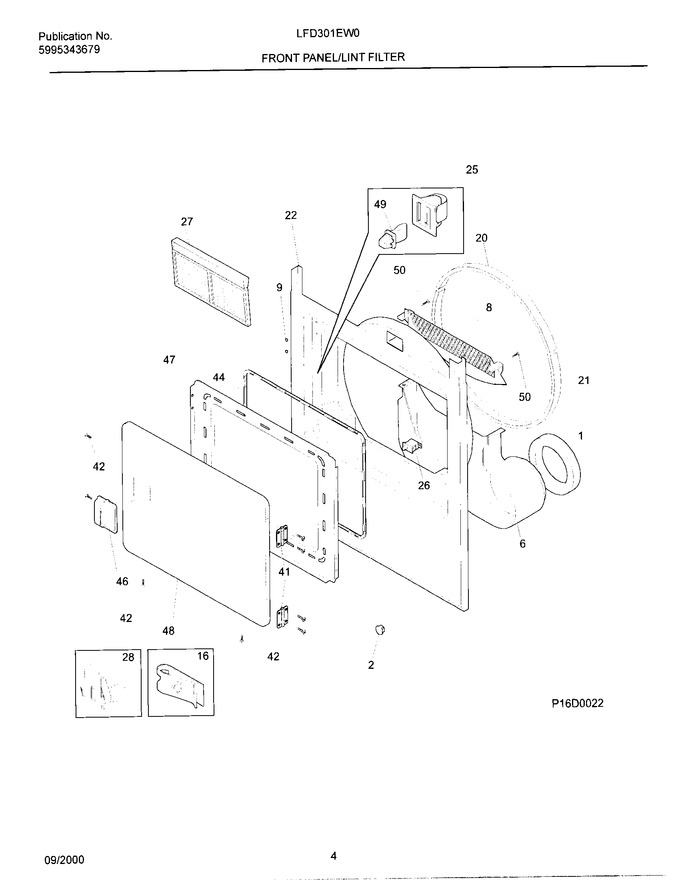

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet/drum
05 - Front Panel/lint Filter
07 - Control/top Panel
09 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134417000 | Seal-air Duct (Replaces: 131581400) |
|
Immediately | $ 10.24 | ||||
| 2 | 131397000 | Plug-dome-white |
|
$ 15.69 | |||||
| 6 | 131621900 | Duct-air |
|
- | |||||
| 8 | 131845801 | Asmy-moist Sensor/harn Stack |
|
$ 167.66 | |||||
| 9 | 131633200 | Plug,white |
|
$ 17.67 | |||||
| 16 | 131063700 | Clip-wiring |
|
$ 18.11 | |||||
| 20 | DE790 | Glide-drum (Replaces: 5303937139) |
|
Immediately | $ 40.53 | ||||
| 21 | 5303283286 | Seal-basket Lower |
|
$ 48.04 | |||||
| 22 | 131845902 | Panel-front Stack W/lite |
|
- | |||||
| 25 | 131658800 | Catch-door |
|
Immediately | $ 75.98 | ||||
| 26 | 134813600 | Switch-door W/o Lite (Replaces: 131843100) |
|
Immediately | $ 47.88 | ||||
| 27 | 131450300 | Lint Trap |
|
Immediately | $ 33.86 | ||||
| 28 | 5303281074 | Clip-guide |
|
$ 18.27 | |||||
| 41 | 134222900 | Hinge-door (Replaces: 131627500) |
|
$ 25.20 | |||||
| 42 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 16.54 | ||||
| 44 | 137551901 | Gasket-door (Replaces: 131129900) |
|
Immediately | $ 45.56 | ||||
| 46 | 131644700 | Handle-door, White |
|
Immediately | $ 66.15 | ||||
| 47 | 131844104 | Panel-inner Door White |
|
$ 224.12 | |||||
| 48 | 131789303 | Door-outer, White |
|
$ 168.47 | |||||
| 49 | 5303207102 | Strike Door (Replaces: 5303211430) |
|
Immediately | $ 22.05 | ||||
| 50 | 131303300 | Screw-lock, Ph Ab, 10-16 X .50 |
|
- | |||||
| 5308027429 | Adhesive, High Temp |
|
Immediately | $ 66.94 | |||||
| 131657500 | Harness,moisture Sensor |
|
$ 77.81 | ||||||
| 131474700 | Insulation |
|
$ 33.67 | ||||||
| 137576600 | Plug-light Hole (Replaces: 131870700) |
|
Immediately | $ 15.75 |
