Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B0523562 Insul. By The Ft. Appelez-nous -
2 10165101 Clip-tubular Appelez-nous -
3 D7832903 Cover, P.c. Board Appelez-nous -
4 10111004 Bucket-igloo Appelez-nous -
5 10111103 Bucket,ref. Door Appelez-nous -
6 10169003 Snugger Igloo Appelez-nous -
7 10137601 Clip Trim Appelez-nous -
8 10133101 Trim Vertical Appelez-nous -
9 10111302 Liner Ref Door Appelez-nous -
10 10057504WQ Ref Dr Fmd Assy Appelez-nous -
11 10165001 Tunnel-air Appelez-nous -
12 10359701 Gasket, Door (w Ref) Appelez-nous -
13 M0213815 Screw Appelez-nous -
15 M0219730 Screw Special Order $ 7.65

17 B0523585 Insulation Batt Per Foot Appelez-nous -
18 10154901 Frame-igloo Dairy Appelez-nous -
19 10111803 Door, Igloo Appelez-nous -
20 D7806403 Container Sec. Ser. Appelez-nous -
21 10310901 Tray, Butter Appelez-nous -
22 D7805909 Cover, Egg Bucket Appelez-nous -
23 D7695616 Egg Bucket Appelez-nous -
24 10096904 Panel Black Glass Appelez-nous -
25 10154801 Cavity Dairy Appelez-nous -
26 B5629055 Insulation Batt Appelez-nous -
27 10189804 Ref Trim Retainer Appelez-nous -
28 10162003 Ext. Hz Dairy Shelf Appelez-nous -
29 10162004 Ass``y, Shelf Appelez-nous -
30 10162101 Glide-igloo Door Appelez-nous -
31 10161603 Door Dairy Appelez-nous -
32 B5612028 Insulation Batt Appelez-nous -
33 B5629059 Insulation Batt Appelez-nous -
34 B5629060 Insulation Batt Appelez-nous -
35 10271101 Insul. Batt. Appelez-nous -
36 10161901 Ass`y, Shelf Remove Appelez-nous -
37 10161902 Ass``y, Shelf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

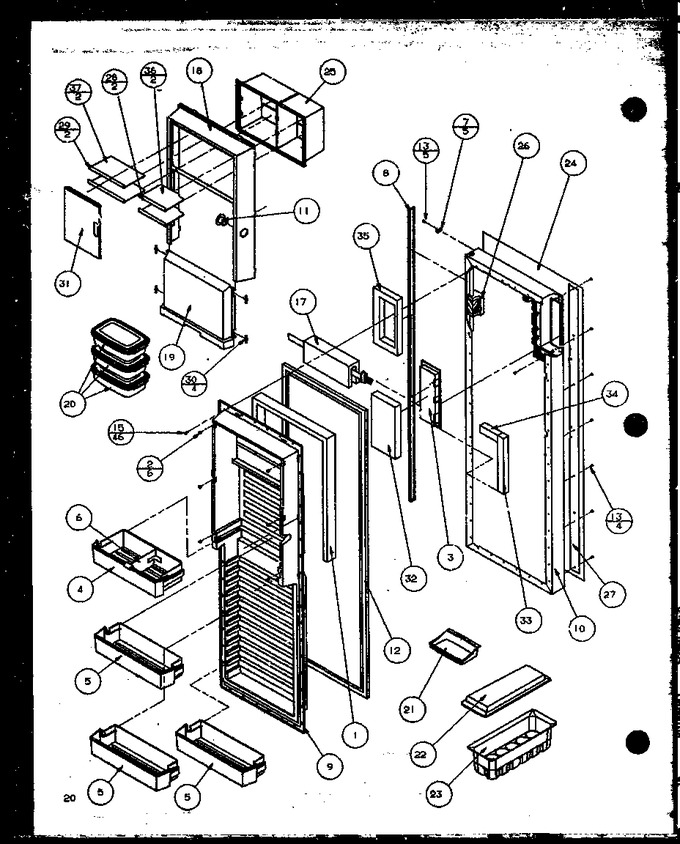

Diagram for 36791 (BOM: P1152601W W)
