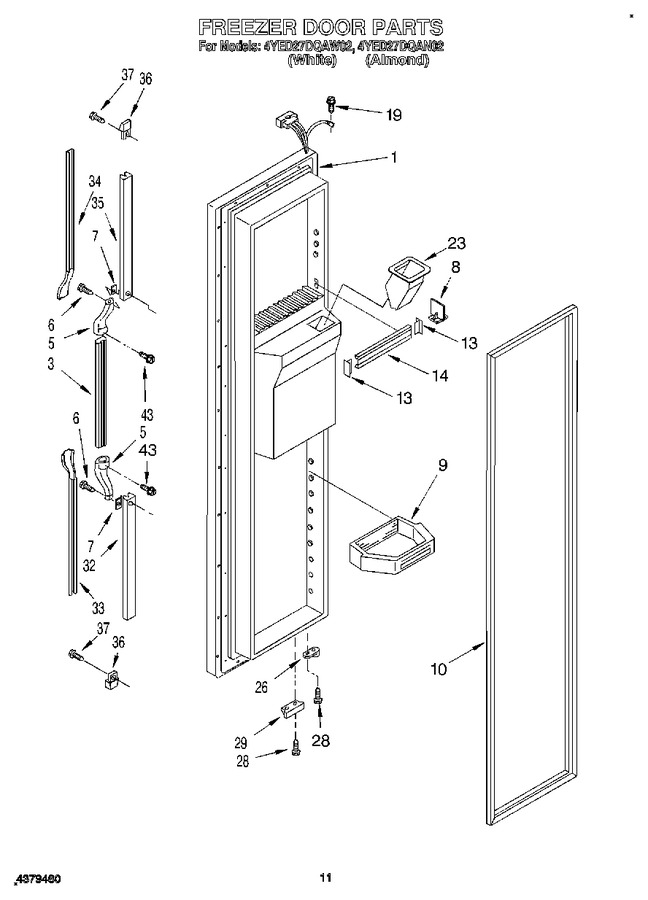

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2170259		Freezer Door (includes Item No.10 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2171686		Freezer Door (includes Item No.10 And Dispenser Front Parts) (almond)		Appelez-nous	-
3	943079		Handle, Center (almond)		Appelez-nous	-
3	1124713		Handle, Center (white)		Appelez-nous	-
5	1119359		End Cap (2)		Appelez-nous	-
6	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
7	935075		Shim, End Cap (2)		Appelez-nous	-
8	1123293		Divider, Shelf		Appelez-nous	-
9	2150137		Shelf Bin (4)		Appelez-nous	-
10	2159074		Door Gasket, Magnetic (service) (light Grey)   (Replaces: 2159078)				$ 310.19
10	2159074		Door Gasket, Magnetic (service) (mist Beige)				$ 310.19
13	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
14	2159192		Trim, Door Shelf		Appelez-nous	-
19	WP488234		Screw   (Replaces: 489422)				$ 6.74
23	2156145		Chute, Ice		Appelez-nous	-
26	4318165		Door Closer, Upper Cam   (Replaces: 2155313)			Immediately	$ 27.36
28	WP999367		Screw   (Replaces: 489367)				$ 7.86
29	2155331		Bracket, Door Stop		Appelez-nous	-
32	1119360		Retainer, Insert		Appelez-nous	-
33	1119363		Insert, Handle (almond)		Appelez-nous	-
33	1119361		Insert, Handle (white)		Appelez-nous	-
34	1119373		Insert, Handle (white)		Appelez-nous	-
34	1119375		Insert, Handle (almond)		Appelez-nous	-
35	1119372		Retainer, Insert		Appelez-nous	-
36	2156220		End Cap (2)		Appelez-nous	-
37	489075		Screw		Appelez-nous	-
43	489022		Screw		Appelez-nous	-
