01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

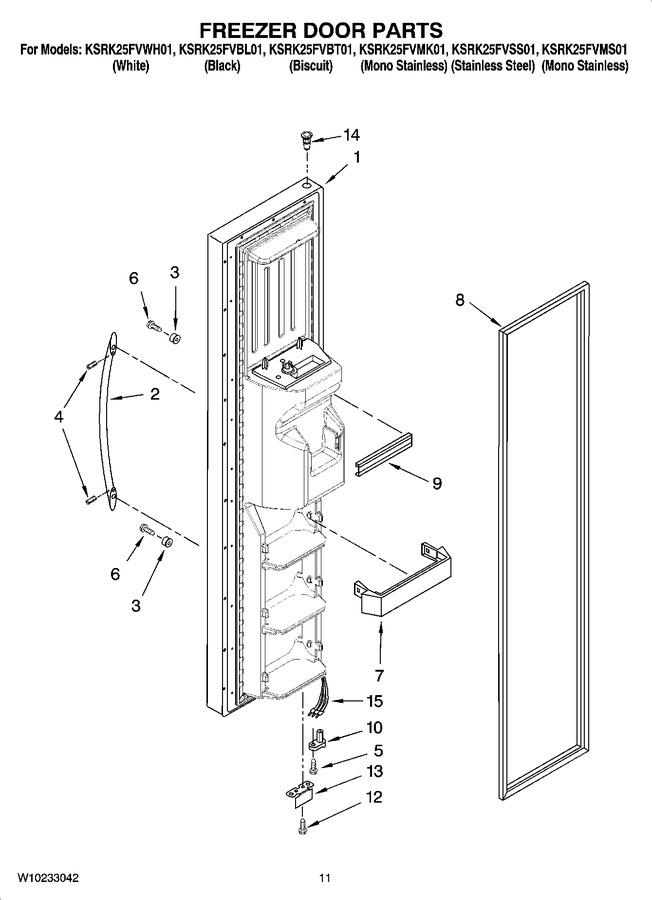

1	W10149993		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10149994		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10149995		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10166663		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10149996		Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Satina)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
2	2319727T		Handle (biscuit)		Appelez-nous	-
2	2319727S		Handle (stainless Steel)				$ 133.96
3	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
4	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 8.57
4	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	WP488163		Screw   (Replaces: 488208)				$ 7.92
7	2223559K		Shelf Bin (3)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
10	2323535		Door Closer, Upper Cam				$ 33.97
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
13	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
14	2301049		Thimble-top (for Stainless Steel And Monochromatic Satina Models)				$ 75.42
14	WP2182181		Thimble, Top (for White, Biscuit, & Black Models)   (Replaces: 2308091)				$ 8.15
15	W10193330		Wire Assy, Door				$ 71.28

    View Diagram in Separate Window       Print Part List
