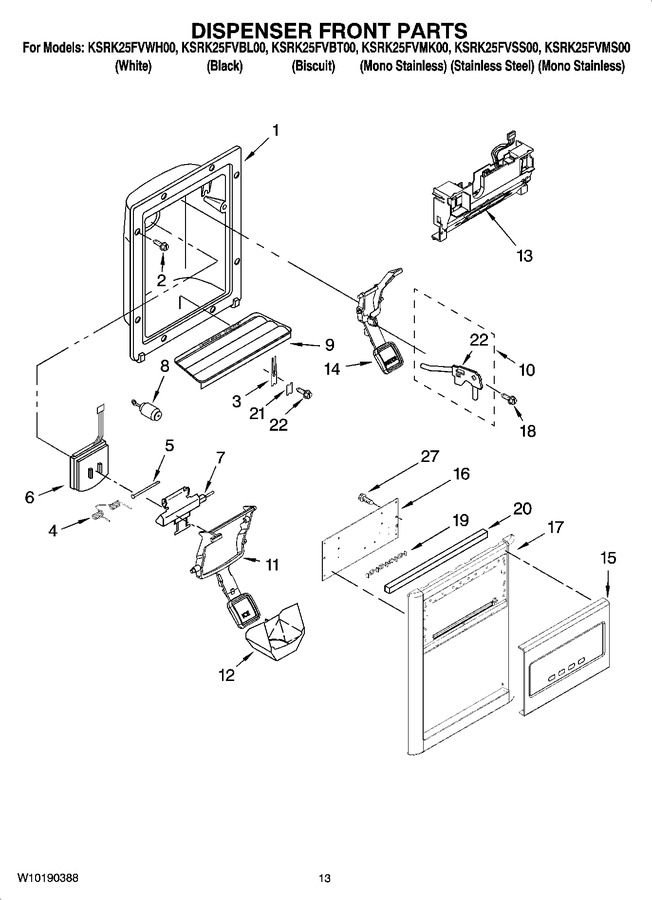

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Delay Mechanism |
|
- | |||||
| 9 | WP2206670B | Grille, Overflow (apollo Gray) (Replaces: W10171993) |
|
Immediately | $ 35.52 | ||||
| 9 | WP2206670B | Grille, Overflow (black) (Replaces: 2206670B) |
|
Immediately | $ 35.52 | ||||
| 9 | WP2206670T | Grille, Overflow (biscuit) (Replaces: 2206670T) |
|
$ 66.57 | |||||
| 9 | WP2206670W | Grille, Overflow (white) (Replaces: 2206670W) |
|
$ 68.80 | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2304317) |
|
$ 134.13 | |||||
| 11 | 2180259 | Lever, Ice Dispenser (white) |
|
$ 42.12 | |||||
| 11 | 2186850 | Lever, Ice Dispenser (biscuit) |
|
- | |||||
| 11 | 2180261 | Lever, Ice Dispenser (black) |
|
- | |||||
| 11 | 2180261AP | Lever, Ice Dispenser (apollo Gray) |
|
- | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 13 | W10167537 | Bracket, Control |
|
- | |||||
| 14 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: 2180268) |
|
$ 104.60 | |||||
| 14 | WPW10152858 | Lever, Water Dispenser (biscuit) (Replaces: 2186852) |
|
$ 104.60 | |||||
| 14 | 2180270AP | Lever, Water Dispenser (apollo Gray) |
|
$ 47.60 | |||||
| 14 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: 2180270) |
|
Immediately | $ 97.92 | ||||
| 15 | W10136810 | Fascia Assy (white) |
|
- | |||||
| 15 | W10144818 | Fascia Assy (stainless) |
|
$ 42.54 | |||||
| 15 | W10144771 | Fascia Assy (biscuit) |
|
- | |||||
| 15 | W10144770 | Fascia Assy (black) |
|
- | |||||
| 16 | 2321749 | Control Board |
|
- | |||||
| 17 | W10136851 | Front Bezel-disp (black) |
|
- | |||||
| 17 | W10136850 | Front Bezel-disp (white) |
|
$ 185.00 | |||||
| 17 | W10139842 | Front Bezel-disp (stainless) |
|
$ 78.48 | |||||
| 17 | W10136852 | Front Bezel-disp (biscuit) |
|
- | |||||
| 18 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 19 | W10170410 | Support, Window |
|
- | |||||
| 20 | 2305571 | Gasket |
|
$ 26.13 | |||||
| 21 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 22 | WP2304673 | Bracket, Dispenser (Replaces: 2304673) |
|
$ 15.60 | |||||
| 27 | 27489214 | Screw |
|
- |
