SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

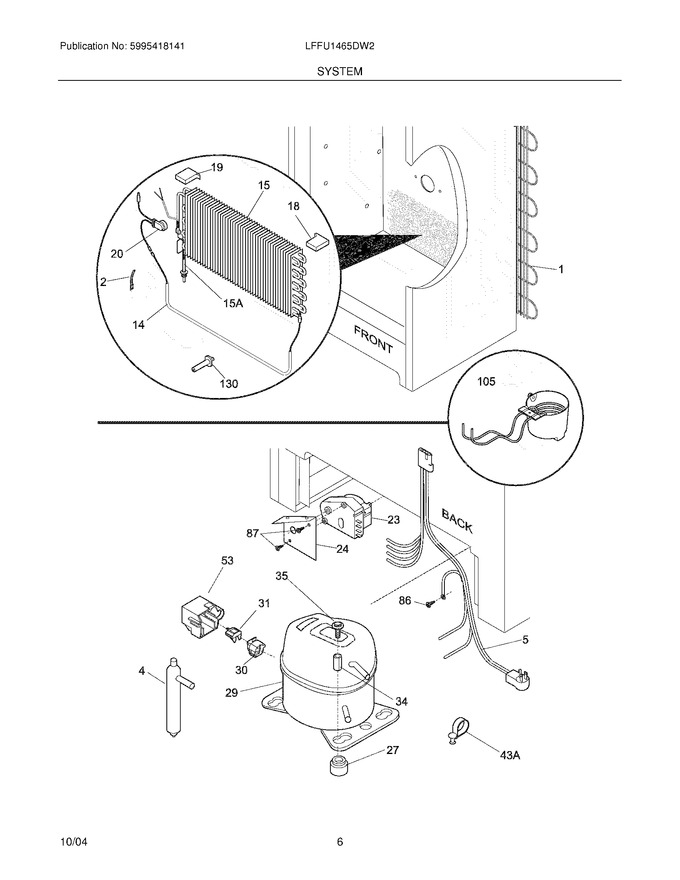

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
5	216971900		Harness-main		Appelez-nous	-
14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 108.68
15	297414800		Evaporator   (Replaces: 216737400)				$ 161.44
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 30.58
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
29	216966800		Compressor,assy		Appelez-nous	-
30	216596800		Starter/,relay		Appelez-nous	-
34	5306594529		Sleeve Compressor (3)				$ 10.34
35	5303272328		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor,(3)				$ 10.34
53	216347800		Cover Terminal,cover-comp Term		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
105	216854001		Cup-drain		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
15A	297348500		Heat Exchanger   (Replaces: 216565700)				$ 125.21
43A	216629700		Clip		Appelez-nous	-
F1	5300123788		Condenser				$ 706.44
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 63.94
F31	216954208		Overload Protector   (Replaces: 216100106)				$ 82.69
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 35.19
NI	216502500		Sleeve,suction Line				$ 12.05

    View Diagram in Separate Window       Print Part List
