SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated

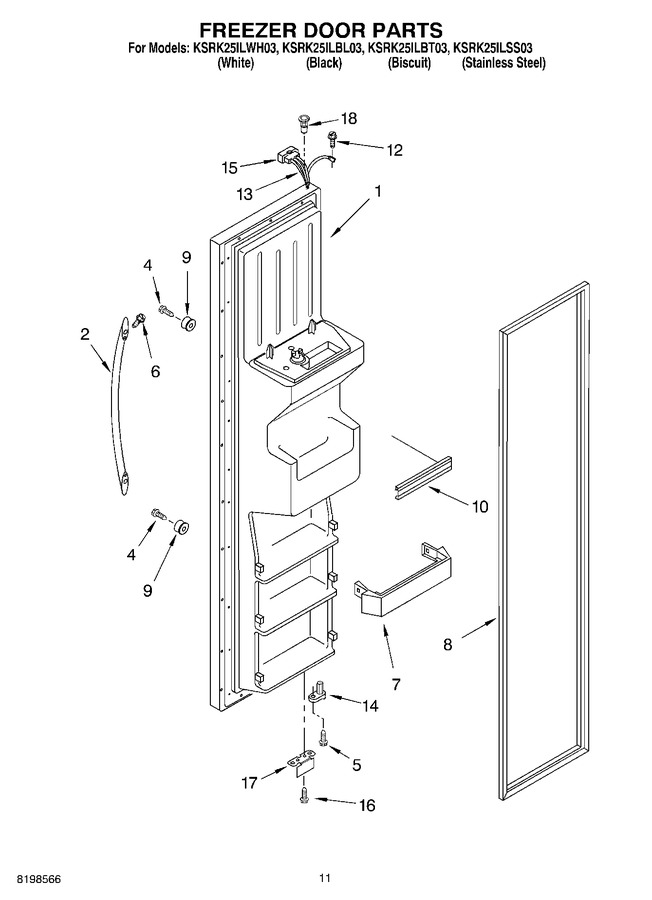

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255407B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2255407T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2216569S		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2255407W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2188635W		Handle (includes 6) (white)		Appelez-nous	-
2	2188635B		Handle (includes 6) (black)		Appelez-nous	-
2	2188635T		Handle (includes 6) (biscuit)		Appelez-nous	-
2	2188635S		Handle (includes 6) (stainless Steel)		Appelez-nous	-
4	WP488163		Screw   (Replaces: 488208)				$ 7.92
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	98654		Set Screw		Appelez-nous	-
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
9	2203690		Stud, Handle		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
12	WP489128		Screw   (Replaces: 488500)				$ 11.40
13	2206178		Wire Harness				$ 36.28
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
16	WP489483		Screw   (Replaces: 489420)				$ 11.41
17	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
17	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
