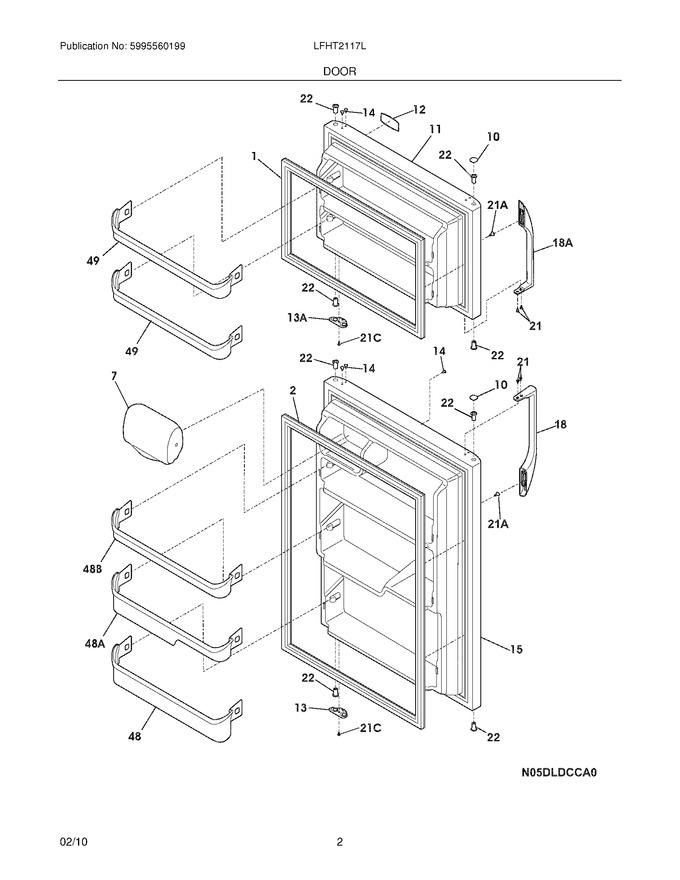

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872505 | Gasket-frzr Door,white ,magnetic |
|
$ 219.04 | |||||
| 7 | 240337712 | Door-dairy,w/o Graphics ,clear (Replaces: 240337703) |
|
Immediately | $ 40.45 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 21.06 | ||||
| 11 | 241798401 | Door-frzr,white ,complete Assy |
|
$ 516.17 | |||||
| 12 | 242016301 | Nameplate |
|
$ 4.73 | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 16.85 | |||||
| 14 | 240494001 | Plug-button,white |
|
Immediately | $ 20.22 | ||||
| 15 | 241798501 | Door-refr,white ,complete Assy |
|
Immediately | $ 603.65 | ||||
| 18 | 5304506469 | Handle-door,white ,refr-rh/frzr-lh (Replaces: 242059504) |
|
Immediately | $ 77.50 | ||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 8.43 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 58.19 | ||||
| 49 | 240534801 | Rack-door |
|
Immediately | $ 55.13 | ||||
| 13A | 240312414 | Door Stop,white ,frzr |
|
$ 21.26 | |||||
| 18A | 5304506469 | Handle-door,white ,refr-lh/frzr-rh (Replaces: 242059501) |
|
Immediately | $ 77.50 | ||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 33.55 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 57.92 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 38.84 | ||||
| F2 | 242193213 | Gasket,refr Door Seal ,white ,magnetic (Replaces: 241872513) |
|
Immediately | $ 211.36 |
