SELECT A DIAGRAM

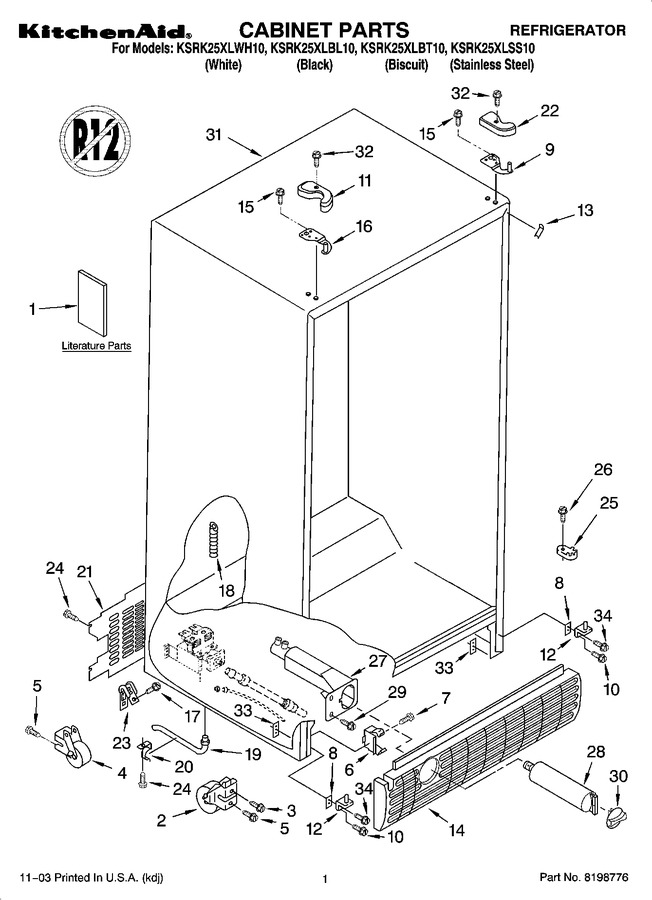

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2255383		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2261535		Literature Parts (energy Label)		Appelez-nous	-
1	N/A		Literature Parts		Appelez-nous	-
1	LIT2255706		Literature Parts (use & Care Guide)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 12.98
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 37.96
5	WP489427		Screw   (Replaces: 489427)				$ 7.06
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
7	WP489478		Screw   (Replaces: 489478)				$ 7.36
8	WP2181911		Shim   (Replaces: 2156056)				$ 31.38
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 92.82
10	W10856122		Screw   (Replaces: 3400103)				$ 7.44
11	WP2203407B		Hinge Cover (fc) (black)   (Replaces: 2203407B)				$ 18.45
11	2203407T		Hinge Cover (fc) (biscuit)		Appelez-nous	-
11	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 19.61
12	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 87.71
13	2196094		Filler, Wrapper (white)		Appelez-nous	-
13	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
13	2196097		Filler, Wrapper (black)		Appelez-nous	-
14	W10803964		Grille (black)   (Replaces: 2186881B)				$ 120.68
14	W10803964		Grille (white)   (Replaces: 2186881W)				$ 120.68
14	2186881T		Grille (biscuit)		Appelez-nous	-
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 90.27
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
18	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 48.11
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 29.61
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.15
21	WP2188755		Cover, Unit   (Replaces: 2188739)				$ 128.44
22	WP2203408B		Hinge Cover (rc) (black)   (Replaces: 2203408B)				$ 17.60
22	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 19.82
22	2203408T		Hinge Cover (rc) (biscuit)		Appelez-nous	-
23	549193		Clamp-service Cord				$ 12.65
24	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
25	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.31
26	WP489483		Screw   (Replaces: 489483)				$ 10.27
27	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 89.92
28	EDR5RXD1B		Water Filter   (Replaces: 2203220)			Immediately	$ 49.99
29	WP489500		Screw   (Replaces: 489500)				$ 7.35
30	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 52.66
30	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 50.27
30	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 11.22
31	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	WP8281227		Screw   (Replaces: 8281227)				$ 9.86
33	WP2304249		Plate, Screw   (Replaces: 2203098)				$ 13.45
34	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18

    View Diagram in Separate Window       Print Part List
