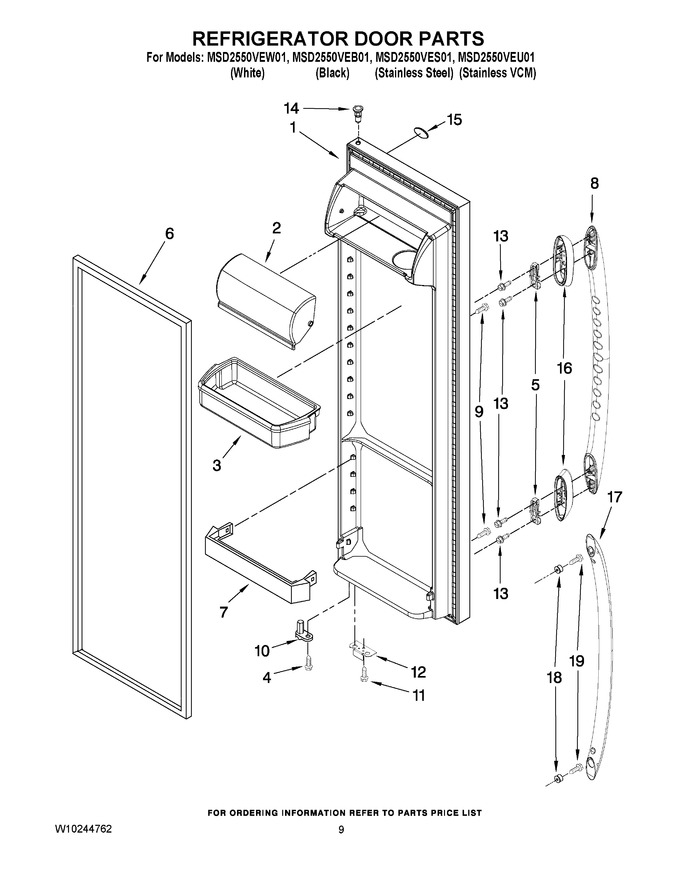

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10159873		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
1	W10180652		Refrigerator Door (includes Item No.6) (stainless Steel)		Appelez-nous	-
1	W10172722		Refrigerator Door (includes Item No.6) (stainless Vcm)		Appelez-nous	-
1	W10153847		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 89.42
3	WP2203828		Shelf Bin (3)   (Replaces: 2203828)				$ 100.30
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	13067101		Clip				$ 5.65
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 333.00
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 332.76
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 78.61
8	WP12743701W		Handle, Extr (white)   (Replaces: 12743701W)				$ 180.34
8	WP12743701B		Handle, Extr (black)   (Replaces: 12743701B)				$ 190.87
9	12990203		Screw (4)		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
13	WPW10288153		Screw   (Replaces: 2326016)			Immediately	$ 9.65
14	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
15	2324038		Nameplate				$ 71.59
16	12834803W		Accent (white)		Appelez-nous	-
16	12834803B		Accent (black)				$ 59.63
17	W11690159		Handle (stainless)   (Replaces: 67006391)				$ 173.76
18	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 9.66
19	WP488163		Screw   (Replaces: 488208)				$ 7.92
