SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts

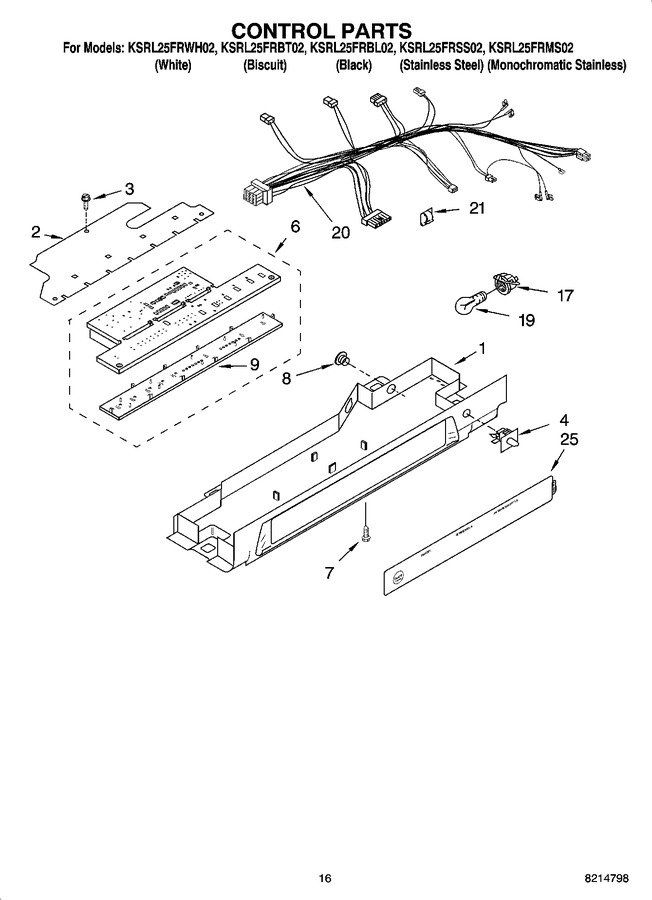

10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2212005		Control Box		Appelez-nous	-
2	2216879		Cover		Appelez-nous	-
3	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Light Switch   (Replaces: 2219875)			Immediately	$ 40.40
6	2304009		Control Board Asm (includes 25)		Appelez-nous	-
7	WP67006908		Screw   (Replaces: 8281244)			Immediately	$ 7.95
8	940014		Hole Plug				$ 18.33
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
19	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
20	2216115		Harness, Control Box		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
25	2308323		Overlay, Control Box		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
