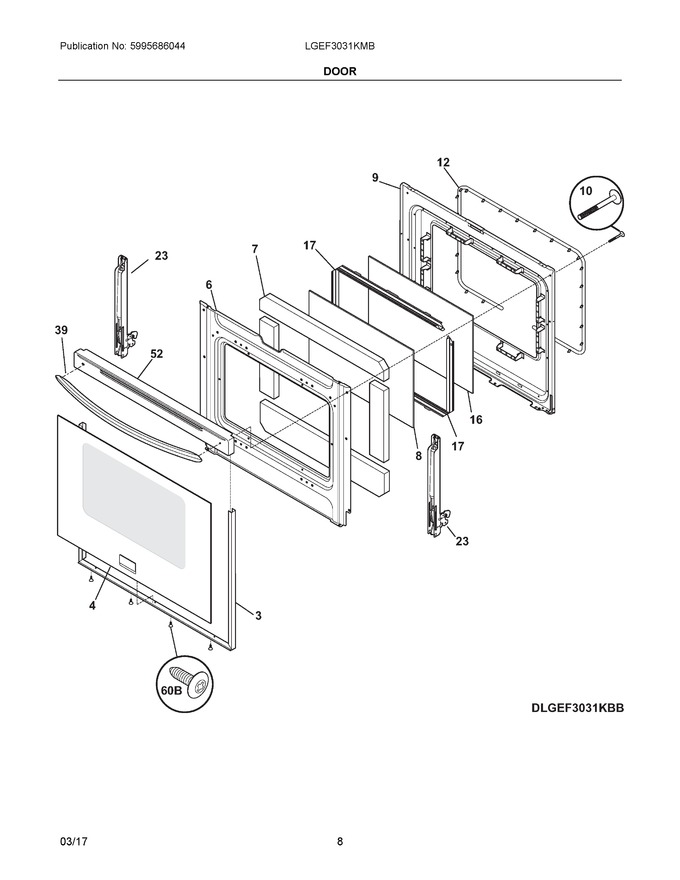

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935377 | Trim Kit-door, 3 Sided, Black, W/tape (Replaces: 5303935317) |
|
Immediately | $ 64.58 | ||||
| 4 | 316452806 | Door Assembly, Glass/overlay, Black/slvr Mist, W/foil & Badge |
|
- | |||||
| 5 | 316446401 | Glass, Oven Door, Airwash (Replaces: 316446400) |
|
Immediately | $ 139.03 | ||||
| 6 | 316406328 | Shield, Wool (Replaces: 316406310) |
|
$ 96.90 | |||||
| 7 | 316405600 | Insulation, Oven Door |
|
$ 85.05 | |||||
| 9 | 316423701 | Liner, Oven Door |
|
$ 143.50 | |||||
| 10 | 5304507924 | Screw, Handle Mtg., #10-24 X 2, (2) (Replaces: 316439505) |
|
Immediately | $ 18.31 | ||||
| 12 | 316405000 | Seal, Oven Door |
|
Immediately | $ 199.08 | ||||
| 16 | 316117501 | Glass, Oven Door, Inner |
|
$ 148.16 | |||||
| 17 | 5304504811 | Spacer, Door Glass, (2) (Replaces: 316402403) |
|
Immediately | $ 27.80 | ||||
| 20 | 316408600 | Spacer, Door Handle, (2) |
|
$ 16.45 | |||||
| 23 | 316537304 | Hinge, Oven Door, Blue, (2) |
|
- | |||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554005) |
|
Immediately | $ 187.16 | ||||
| 40 | 316446301 | Bracket, Glass, Airwash, (2) |
|
$ 59.96 | |||||
| 52 | 316575501 | Cap, Door Trim, Black (Replaces: 316468401) |
|
$ 123.03 | |||||
| 10B | 316008401 | Washer, 3/4 Od X 1/4 Id, Steel |
|
$ 12.60 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NI | 316433603 | Label, Anti-tip |
|
$ 3.94 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 |
