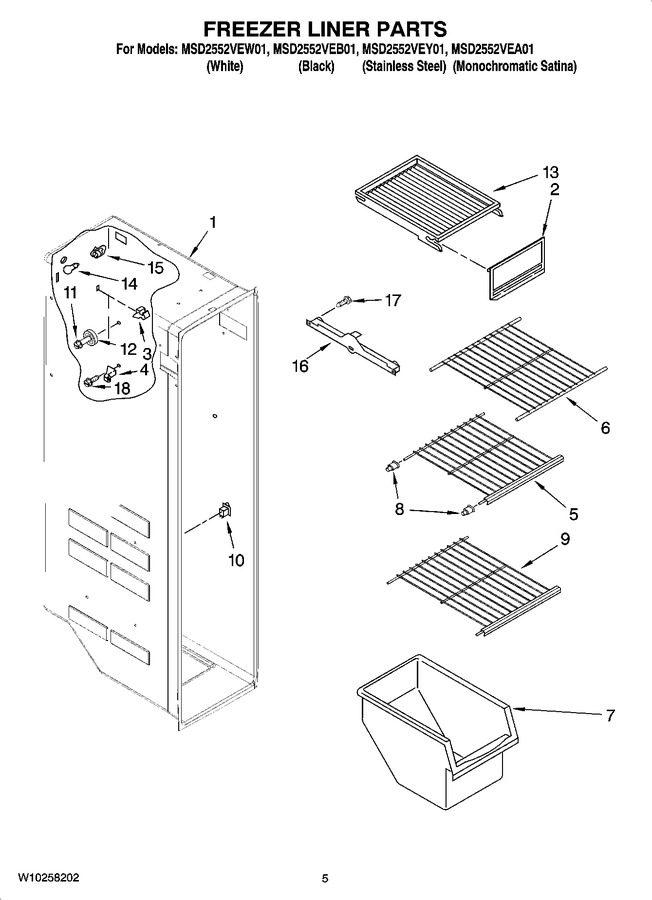

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 87.27
3	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
4	2196206		Support, Stud (4)		Appelez-nous	-
5	WPW10318948		Shelf, Wire   (Replaces: 2309597)				$ 147.84
6	WPW10318947		Shelf, Wire   (Replaces: 2309596)				$ 87.44
7	W11577967		Basket, Freezer   (Replaces: 2309757)				$ 91.71
8	WPW10130299		Cup, Shelf Mount   (Replaces: W10130299)			Immediately	$ 14.00
9	2309522		Shelf Wire		Appelez-nous	-
10	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
11	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
12	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
13	2171714		Shelf, Top Compartment		Appelez-nous	-
14	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
15	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
16	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
16	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
17	718257		Screw   (Replaces: 489100)		Appelez-nous	-
18	W10142289		Screw   (Replaces: 3400893)				$ 9.15
