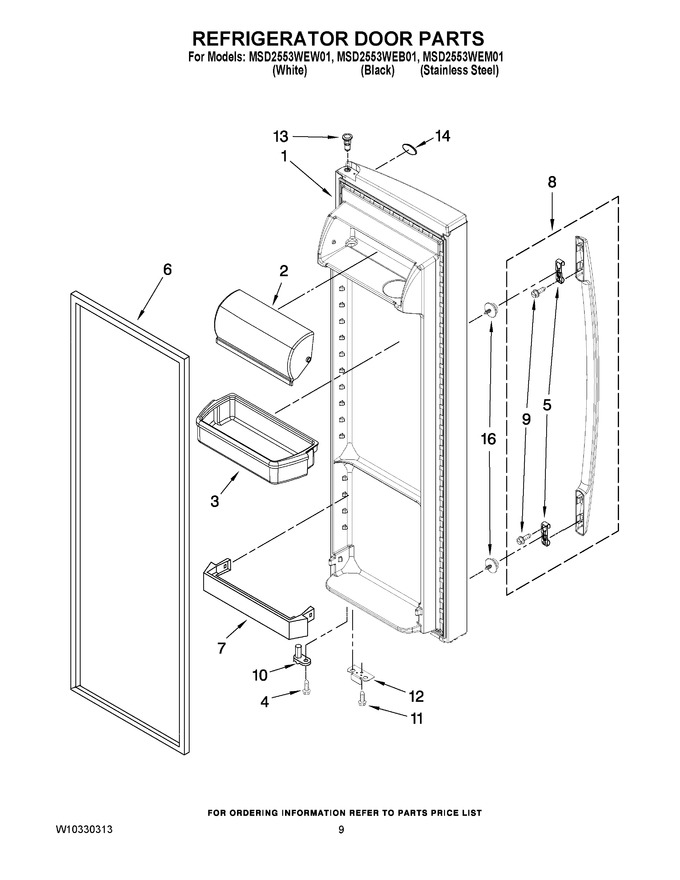

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169198		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
1	W10169200		Refrigerator Door (includes Item No.6) (stainless Steel)		Appelez-nous	-
1	W10169197		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 85.16
3	WPW10321304		Shelf Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
4	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 319.42
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 72.80
8	WPW10170749		Handle, Assy (white)   (Replaces: W10170749)				$ 299.26
8	WPW10170743		Handle, Assy (stainless, All)   (Replaces: W10170743)				$ 348.11
8	WPW10170750		Handle, Assy (black)   (Replaces: W10170750)				$ 295.08
9	W10184500		Screw (4)				$ 36.30
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	2323581		Thimble-top		Appelez-nous	-
14	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
16	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
