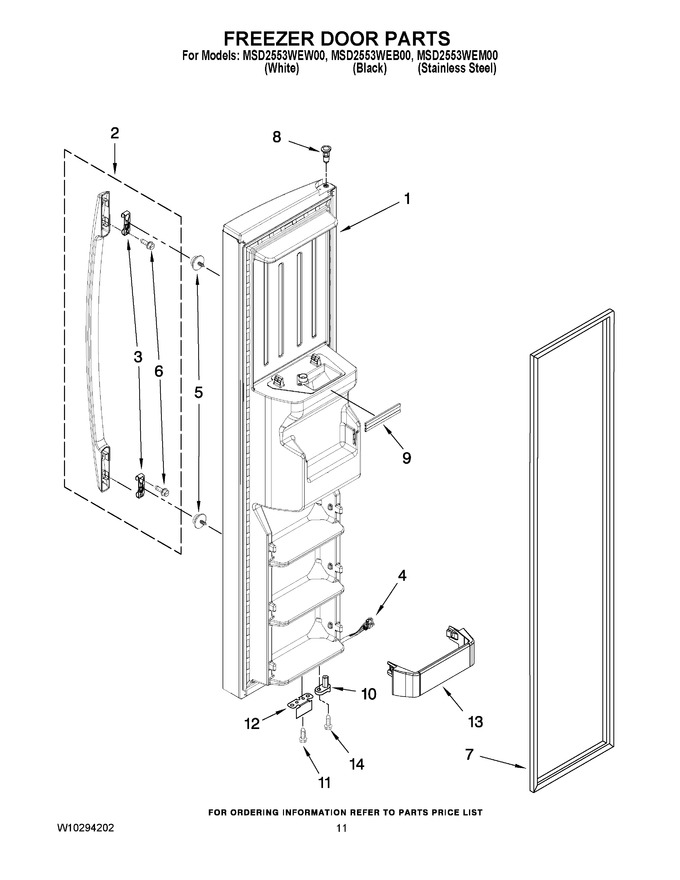

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10291658		Freezer Door (includes No.8 Front Parts) (black)		Appelez-nous	-
1	W10291659		Freezer Door (includes No.8 Front Parts) (stainless Steel)		Appelez-nous	-
1	W10291649		Freezer Door (includes No.8 Front Parts) (white)		Appelez-nous	-
2	WPW10170749		Handle, Assy (white)   (Replaces: W10170749)				$ 314.22
2	WPW10170750		Handle, Assy (black)   (Replaces: W10170750)				$ 309.83
2	WPW10170743		Handle, Assy (stainless, All)   (Replaces: W10170743)				$ 365.52
3	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
4	WPW10193328		Wire Assy, Door   (Replaces: W10193328)				$ 134.19
5	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
6	W10184500		Screw (4)				$ 36.30
7	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	WP2182181		Thimble-top (for Stainless Steel Model)   (Replaces: 2308091)				$ 8.15
8	2301049		Thimble-top (for White, Black)				$ 75.42
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	WP2309718		Trivet-fc   (Replaces: 2309718)				$ 61.49
14	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
