01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts

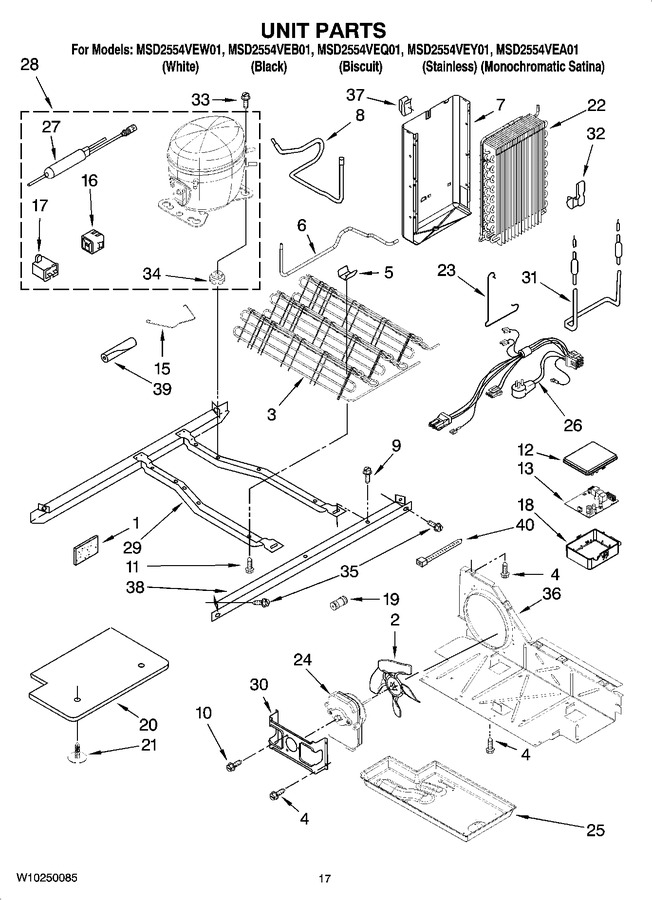

11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.77
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.80
3	2324712		Condenser Assembly				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
6	2325479		Tube, Condenser To Heat Loop		Appelez-nous	-
7	W10194475		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube, Suction				$ 36.04
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
11	W11544659		Screw   (Replaces: 8281232)				$ 14.35
12	2255624		Box Cover		Appelez-nous	-
13	2322572		Elec. Control		Appelez-nous	-
15	W10204187		Clip, Retaining		Appelez-nous	-
16	WPW10189190		Start-device, Combination (start Relay And Overload) (service)   (Replaces: 2319793)			Immediately	$ 131.29
17	WPW10662129		Capacitor (service)   (Replaces: 2169373)			Immediately	$ 58.86
18	2326982		Control Box				$ 90.37
19	WPW10334458		Union   (Replaces: 2320322)				$ 22.67
20	2304899		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 11.26
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
23	2161324		Clip		Appelez-nous	-
24	WP2188874		Motor, Fan   (Replaces: 2188874)			Immediately	$ 124.18
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
26	2310425		Harness, Unit				$ 230.95
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
28	W10139462		Compressor (includes Items 16, 17, 27, & 34) (also Order 876765 Tube Kit)   (Replaces: W10120457)				$ 668.33
29	W10196321		Unit Mounting Frame		Appelez-nous	-
30	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
31	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
32	2161324		Clip, Heater		Appelez-nous	-
33	876811		Screw   (Replaces: 489373)				$ 7.79
34	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
34	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.79
35	489340		Screw		Appelez-nous	-
36	W10163483		Air Baffle		Appelez-nous	-
37	2155547		Clip, Heat		Appelez-nous	-
38	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 124.89
39	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
40	WPW10339879		Wire Tie   (Replaces: 2263990)				$ 8.30
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
