Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10172362 Refrigerator Door (includes Item 6) (white) Appelez-nous -
1 W10172363 Refrigerator Door (includes Item 6) (black) Appelez-nous -
1 W10172364 Refrigerator Door (includes Item 6) (biscuit) Appelez-nous -
1 W10172369 Refrigerator Door (includes Item 6) (stainless) Appelez-nous -
1 W10172476 Refrigerator Door (includes Item 6) (satina) Appelez-nous -
2 WP2256101 Compartment Door   (Replaces: 2256101) In-Stock Immediately $ 89.42

3 WPW10321304 Shelf Bin (3)   (Replaces: 2304235) In-Stock Immediately $ 44.95

4 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

5 WPW10170540 Stud   (Replaces: 2326259) In-Stock Immediately $ 9.66

6 WPW10136734 Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327163) Special Order $ 335.39

6 2159083 Door Gasket, Magnetic (black)   (Replaces: 2309529) Special Order $ 332.76

6 2159075 Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528) In-Stock Immediately $ 333.00

7 WP2156022 Shelf Bin   (Replaces: 2156022) In-Stock Immediately $ 78.61

8 13004701W Handle (includes 13) (white)   (Replaces: 67006114) Special Order $ 193.97

8 67006982 Handle (includes 13) (biscuit) Special Order $ 198.40

8 67006115 Handle (includes 13) (black) Appelez-nous -
8 W11690159 Handle (includes 13) (stainless/satina)   (Replaces: 67006391) Special Order $ 173.76

9 WP488163 Screw (2)   (Replaces: 488208) Special Order $ 7.92

10 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 7.20

11 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

12 WP2206629B Bracket, Door Stop (black)   (Replaces: 2206629B) Special Order $ 42.79

12 WP2206629B Bracket, Door Stop (chrome)   (Replaces: 2206629) Special Order $ 42.79

13 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 8.15

14 WPW10170766 Nameplate   (Replaces: W10170766) In-Stock Immediately $ 70.50

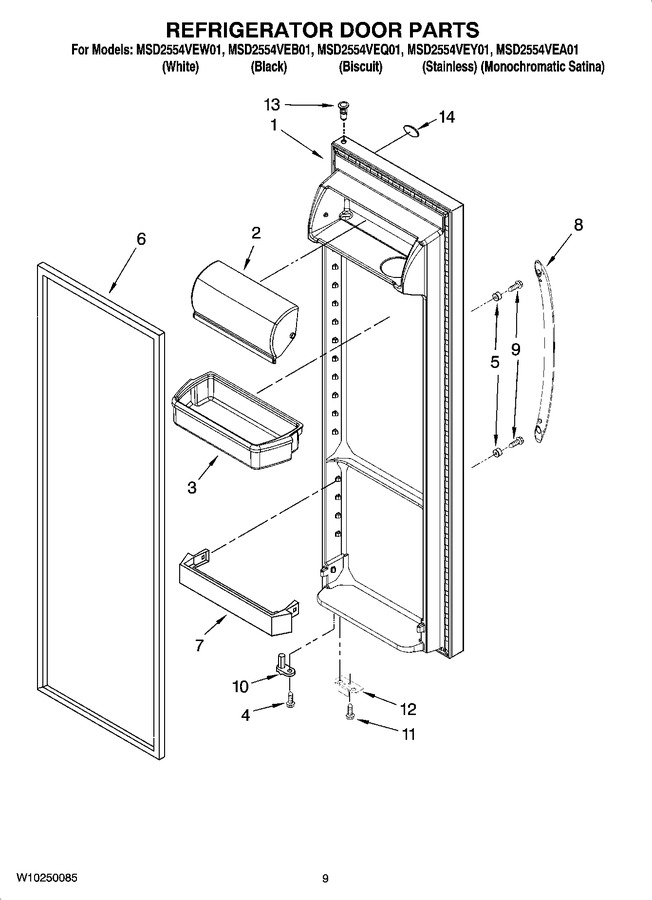

    View Diagram in Separate Window     Print Icon   Print Part List
