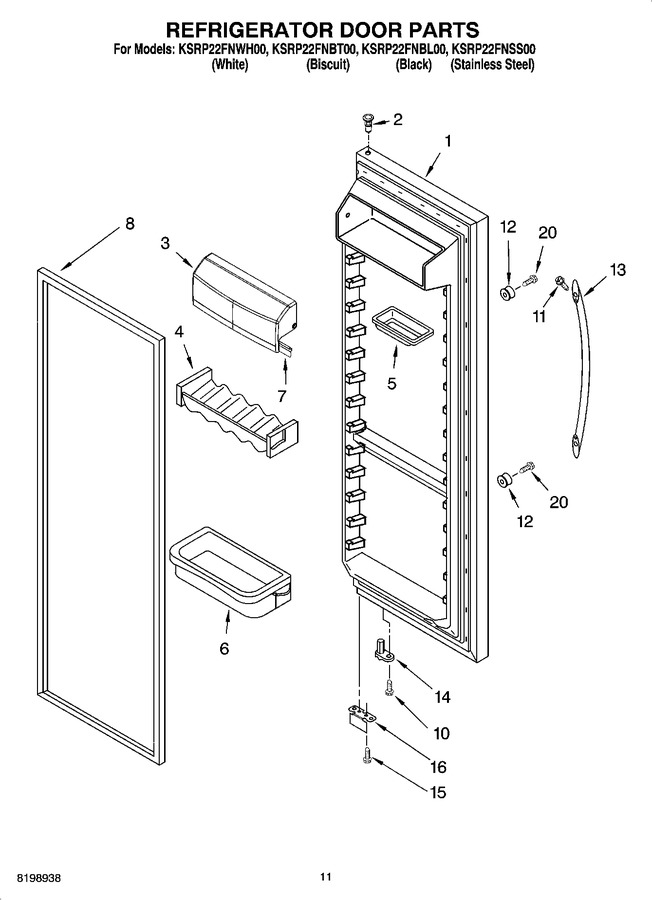

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301188S		Refrigerator Door (includes Item 8) (stainless Steel)		Appelez-nous	-
1	2301088T		Refrigerator Door (includes Item 8) (biscuit)		Appelez-nous	-
1	2301088B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	2301088W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	WP2182181		Thimble, Top (for Stainless Steel Model)   (Replaces: 2182180)				$ 7.76
2	2210771		Thimble, Top (for White, Biscuit, And Black Models)		Appelez-nous	-
3	2301486		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Dish, Butter		Appelez-nous	-
6	2205821		Door Bin (3)		Appelez-nous	-
7	2159124		Gasket		Appelez-nous	-
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 319.60
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 317.32
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	8533976		Screw				$ 8.35
12	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
13	2255512W		Handle (white)		Appelez-nous	-
13	2255512S		Handle (stainless Steel)		Appelez-nous	-
13	2255512B		Handle (black)		Appelez-nous	-
13	2255512T		Handle (biscuit)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
16	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
20	WP488163		Screw   (Replaces: 488208)				$ 7.54

    View Diagram in Separate Window       Print Part List
