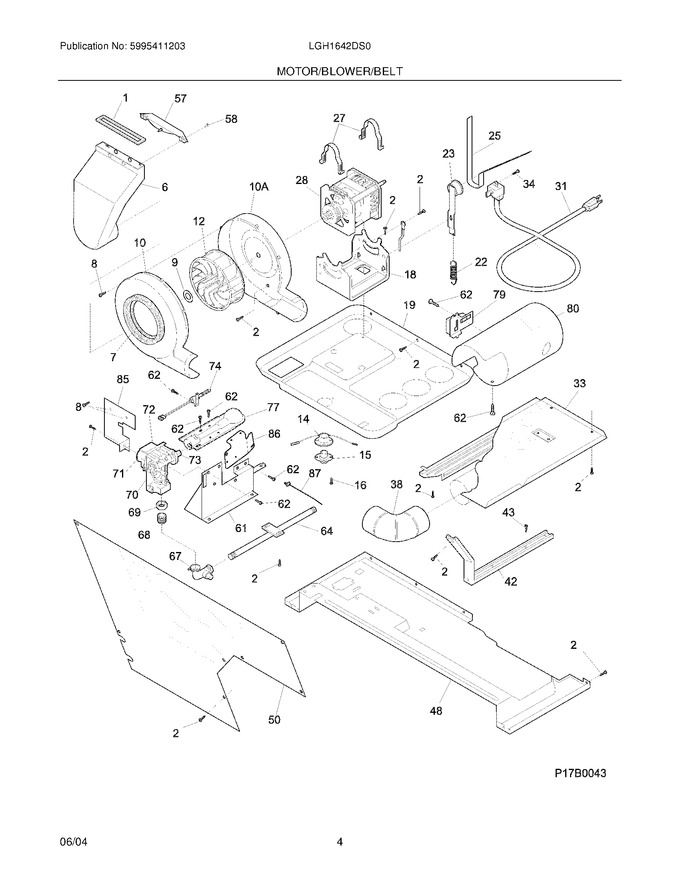

05 - Motor/blower/belt


07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 18.11
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 15.75
6	5304521121		Duct,air   (Replaces: 134086300)				$ 131.73
7	3204490		Seal,blower Housing ,to Air Duct				$ 15.75
8	3205245		Screw,pan Head ,6-18ab X 0.60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 35.65
10	5304485558		Housing,blower ,front ,with Seal   (Replaces: 131784500)			Immediately	$ 157.50
12	131476300		Blower Wheel			Immediately	$ 52.22
16	134178901		Screw,quadrex Ph ,8-18ab X 0.500   (Replaces: 131311900)				$ 16.54
18	131413600		Cradle,motor Mount ,with Idler Stud				$ 104.30
19	131363901		Panel,motor Cradle Mt		Appelez-nous	-
22	3205241		Spring-idler				$ 84.26
23	5304507499		Idler Arm Assy,with Pulley   (Replaces: 131863100)			Immediately	$ 47.40
27	134242400		Clamp,motor Mtg.			Immediately	$ 39.73
33	131731410		Shield,access Area ,cover		Appelez-nous	-
34	134154100		Screw,hex Washer Head ,10-32 X 0.375 ,ground				$ 14.96
38	3204320		Elbow,exhaust Duct		Appelez-nous	-
42	5304439185		Bracket,marriage ,interior		Appelez-nous	-
43	134305100		Screw,hex Washer Head ,1/4-20 X 1.000 ,special		Appelez-nous	-
48	131731310		Panel,dryer ,bottom Rear		Appelez-nous	-
50	3204329		Cover,safety ,lower Front				$ 40.16
57	131729300		Cover,moisture Sensor		Appelez-nous	-
58	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
61	5303309493		Bracket,gas Valve Mtg		Appelez-nous	-
62	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.73
64	134145200		Pipe,gas		Appelez-nous	-
70	5303207409		Valve Gas				$ 481.95
71	5300622602		Solenoid,secondary Coil		Appelez-nous	-
72	5308015680		Solenoid,booster Coil		Appelez-nous	-
73	5303211036		Orifice,natural Gas ,size 44		Appelez-nous	-
85	134287300		Shield,heat		Appelez-nous	-
86	134264800		Plate,adapter		Appelez-nous	-
87	5304528020		Cable Tie,push Mount ,5.20 Inch   (Replaces: 131964400)				$ 10.45
10A	5304485558		Housing,blower ,rear   (Replaces: 134145100)			Immediately	$ 157.50
F14	131658101		Thermostat-heater				$ 41.68
F15	131322600		Thermostat Control				$ 74.52
F25	137292700		Belt,dryer Drive   (Replaces: 134163500)			Immediately	$ 10.38
F28	8581341966035		Motor,dryer Drive ,with Pulley   (Replaces: 134196600)			Immediately	$ 158.34
F31	134500500		Power Cord,electric Svce   (Replaces: 134099900)				$ 48.04
F67	131498500		Valve,gas Shutoff		Appelez-nous	-
F68	134185100		Tail Piece,coupling		Appelez-nous	-
F69	5308015194		Union,hex Nut				$ 13.72
F74	5304517325		Igniter Assy   (Replaces: 134393700)				$ 255.06
F77	134197700		Burner,gas				$ 71.66
F79	5303281135		Sensor,radiant			Immediately	$ 113.40
F80	131712405		Tube-burner   (Replaces: 131712401)				$ 38.56
NI	134391000		Lp Conversion Kit,natural To Lp		Appelez-nous	-
