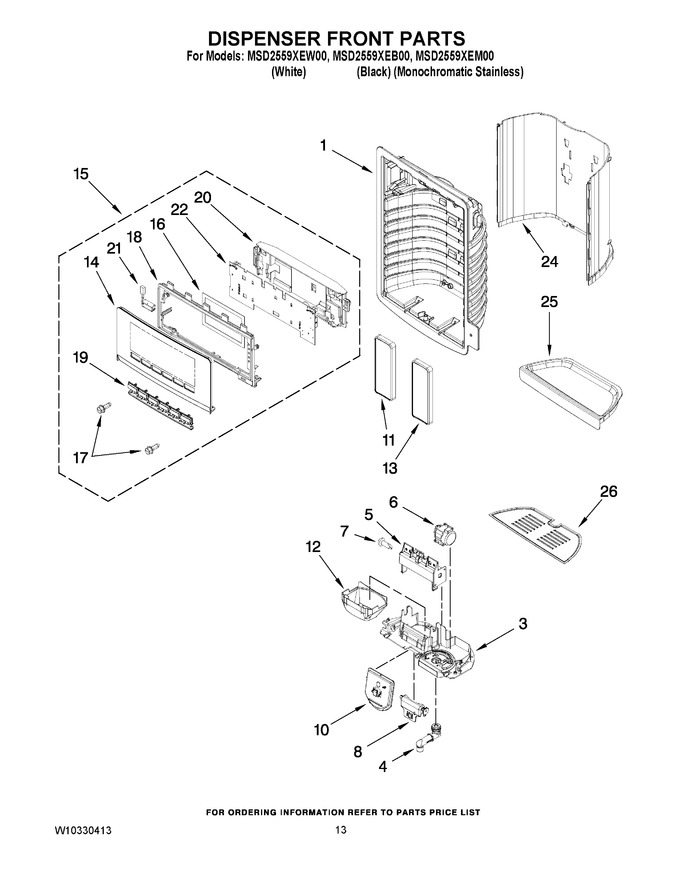

08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
3	W10286902		Separator, Fixed		Appelez-nous	-
4	WP2305235		Spigot-body Assy   (Replaces: 2305235)				$ 140.07
5	W10174827		Bracket, Ice Door				$ 72.78
6	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 99.16
7	W10174818		Clip, Mtr Coup		Appelez-nous	-
8	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 99.69
10	W10346235		Door, Ice   (Replaces: W10174811)				$ 162.21
11	WPW10368730		Pad, Ice Dispenser (black)   (Replaces: W10308363)			Immediately	$ 304.26
11	W10308362		Pad, Ice Dispenser (white)				$ 130.67
12	W10499850		Guide, Ice   (Replaces: W10174808)				$ 99.69
13	W10307626		Pad, Water Dispenser (black)		Appelez-nous	-
13	W10307625		Pad, Water Dispenser (white)		Appelez-nous	-
14	W10286927		Fascia Assy (white)		Appelez-nous	-
14	W10286928		Fascia Assy (black)		Appelez-nous	-
15	WPW10286929		Ui Assy, Stealth   (Replaces: W10286924)				$ 148.55
16	W10254293		Barrier, Moisture		Appelez-nous	-
17	WP3400906		Screw   (Replaces: W10141632)				$ 7.84
18	W10286907		Frame, Fascia		Appelez-nous	-
19	W10286926		Tree, Button		Appelez-nous	-
20	W10254277		Cover, Board		Appelez-nous	-
21	W11290115		Led Assy   (Replaces: W10238083)				$ 80.43
22	WPW10286929		Ctrl-elek, Stealth   (Replaces: W10291367)				$ 148.55
24	W10286899		False Wall (black)		Appelez-nous	-
24	W10286900		False Wall (stainless)		Appelez-nous	-
24	W10286898		False Wall (white)		Appelez-nous	-
25	W10286894		Drip Tray (white)		Appelez-nous	-
25	W10286895		Drip Tray (black)		Appelez-nous	-
25	W10286896		Drip Tray (stainless)		Appelez-nous	-
26	W10286922		Grate, Drip Tray (stainless)		Appelez-nous	-
26	W10286920		Grate, Drip Tray (white)		Appelez-nous	-
26	W10286921		Grate, Drip Tray (black)		Appelez-nous	-
