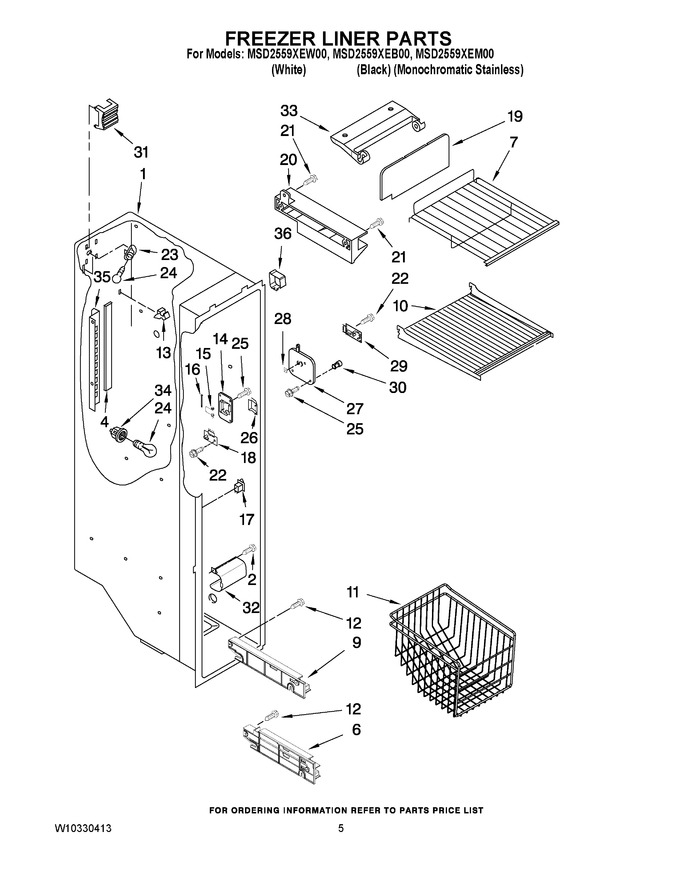

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Asevice Able Part)		Appelez-nous	-
2	W10142289		Screw				$ 9.15
4	2198697		Gasket				$ 36.87
6	2301291		Track, Basket-dual (right Side)				$ 154.30
6	2301292		Track, Basket-dual (left Side)				$ 174.94
7	2211746		Shelf, Slide Out Upper		Appelez-nous	-
9	2301289		Shelf Track (right Side)				$ 86.80
9	2301290		Shelf Track (left Side)				$ 134.88
10	2205837		Shelf (2)		Appelez-nous	-
11	WP2182971		Bin, Sloped   (Replaces: 2182971)				$ 140.21
12	W10759522		Screw   (Replaces: W10004810)				$ 7.75
13	2215823		Clip, Air Duct (2)   (Replaces: 2315163)				$ 10.42
14	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 105.55
15	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
16	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
17	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
18	W11629974		P.c. Boardemitter   (Replaces: W10193840)			Immediately	$ 401.07
19	WP2255720		Cover, Ice Maker   (Replaces: 2255720)				$ 74.82
20	2212321		Slide, Ice Maker Mounting				$ 67.14
21	WP489478		Screw,   (Replaces: W10001260)				$ 7.75
22	2006254		Screw   (Replaces: 489214)				$ 13.13
23	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
24	WPA3073101		Light Bulb   (Replaces: 2326255)			Immediately	$ 12.11
25	WPW10142283		Screw   (Replaces: W10142283)				$ 9.84
26	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 48.27
27	W10173569		Cover, Receiver				$ 66.93
28	2315398		Slide, Ice Maker Shut Off				$ 10.90
29	W10279461		P.c. Board, Receiver		Appelez-nous	-
30	WP2198643		Lens   (Replaces: 2198643)				$ 8.18
31	2198589		Light Shield		Appelez-nous	-
32	W11298978		Light Lens   (Replaces: 2212340)				$ 93.88
33	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.19
34	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
35	2198609		Ladder (left Side)				$ 42.40
35	2198610		Ladder (right Side)				$ 63.20
36	2303234		Shield, Wiring		Appelez-nous	-
