SELECT A DIAGRAM
01 - Cover

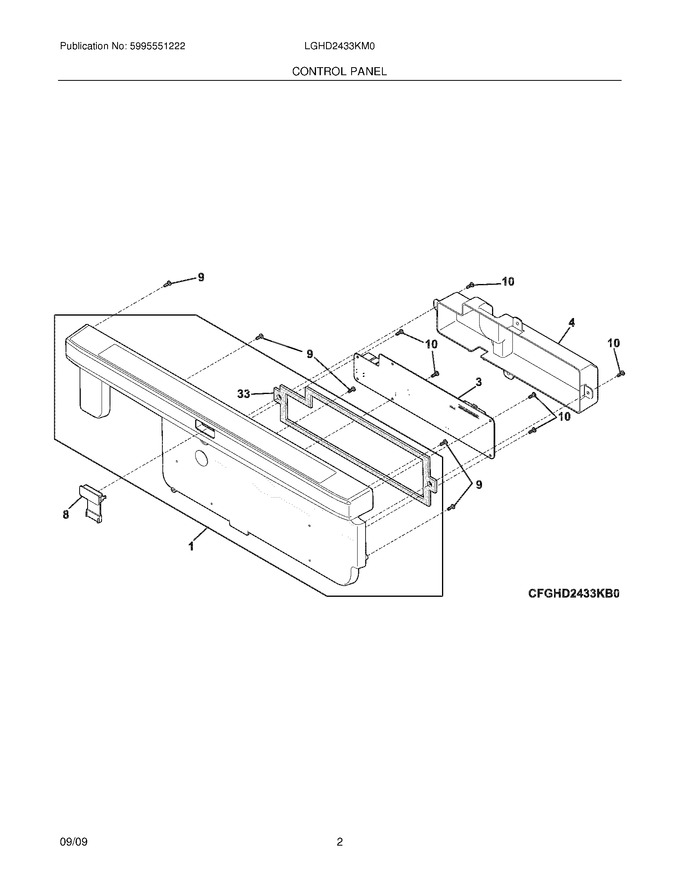

03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 154718801 | Cover,control |
|
$ 35.44 | |||||
| 9 | 154783101 | Screw,phillips ,8-10 X .7 (Replaces: 154282901) |
|
$ 7.88 | |||||
| 10 | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 10.24 | |||||
| 33 | 154478901 | Gasket,cover |
|
$ 68.51 | |||||
| F1 | 154791806 | Console Assembly,w/overlay ,stainless/black,& Cover Gasket |
|
$ 264.86 | |||||
| F3 | 5304514670 | Board,control (Replaces: 154752901) |
|
Immediately | $ 204.61 | ||||
| F8 | 154734601 | Display Assembly |
|
$ 78.17 | |||||
| FNI | 154832401 | Harness,wiring ,main (Replaces: 154734201) |
|
$ 183.14 | |||||
| NI | 154758432 | Energy Guide |
|
- | |||||
| NI | 808326801 | Screw,ground ,no.8-18 X .375 (Replaces: 154409401) |
|
$ 3.15 |
