SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer (series 01)


04 - Door/drawer (series 44)


05 - Oven/base


06 - Top Assembly


07 - Wiring Information

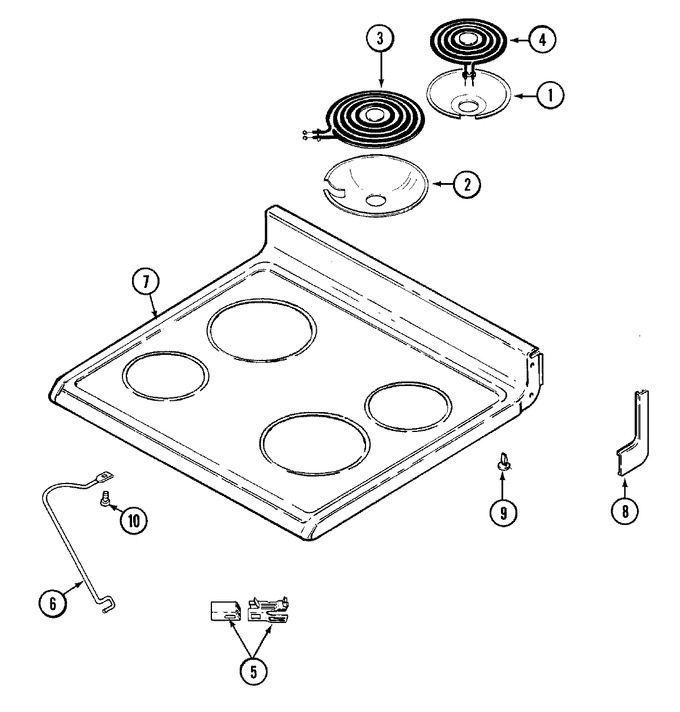

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10290353RW		Bowl, Drip (6``) (blk)   (Replaces: 7725P022-60)	01		Immediately	$ 21.41
1	W10290353RW		Pan, Drip (6`` Solid)   (Replaces: 74002961)	38		Immediately	$ 21.41
1	W10290353RW		Bowl, Drip (6``w/hole-blk)   (Replaces: 7725P040-60)	01		Immediately	$ 21.41
2	WPW10290350		Bowl, Drip (8`` Blk)   (Replaces: Y04100393)	38		Immediately	$ 16.94
2	WPW10290350		Bowl, Drip (8``) (blk)   (Replaces: 7725P023-60)	01		Immediately	$ 16.94
3	WP12001560		Element (8``)   (Replaces: 7406P088-60)	12			$ 200.87
3	WP3191454		Element (8``)   (Replaces: 7406P039-60)	01			$ 190.90
3	WP12001560		Kit, Element (8`` Blk. Med.)   (Replaces: 12001230)	37			$ 200.87
4	WP660532		Element (6``)   (Replaces: 7406P037-60)	01		Immediately	$ 41.00
4	WPW10259868		Kit, Element (6`` Blk. Med.)   (Replaces: 12001231)	37		Immediately	$ 124.76
4	WPW10259868		Element (6``)   (Replaces: 7406P087-60)	12		Immediately	$ 124.76
5	12001676		Kit, Receptacle   (Replaces: 1430306K)	01		Immediately	$ 31.61
5	WP74004005		Screw   (Replaces: 7118P013-60)	01			$ 8.66
6	7809P014-60		Support, Prop	01	Appelez-nous	-
7	WP74004005		Screw   (Replaces: 7118P013-60)	01			$ 8.66
7	2002W103-81		Top, Main (wht)	01	Appelez-nous	-
8	WP3195558		Nut, Push On   (Replaces: 74002563)	01			$ 8.96
8	7746P030-60		End Cap (rt-blk)	01			$ 26.16
8	7746P031-60		End Cap (lt-blk)	01			$ 26.25
9	74001663		Glide	01	Appelez-nous	-
10	7101P280-60		Screw W/washer (blk)	01	Appelez-nous	-
11	5175D049-60		Harness, Panel To Top	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
