SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts

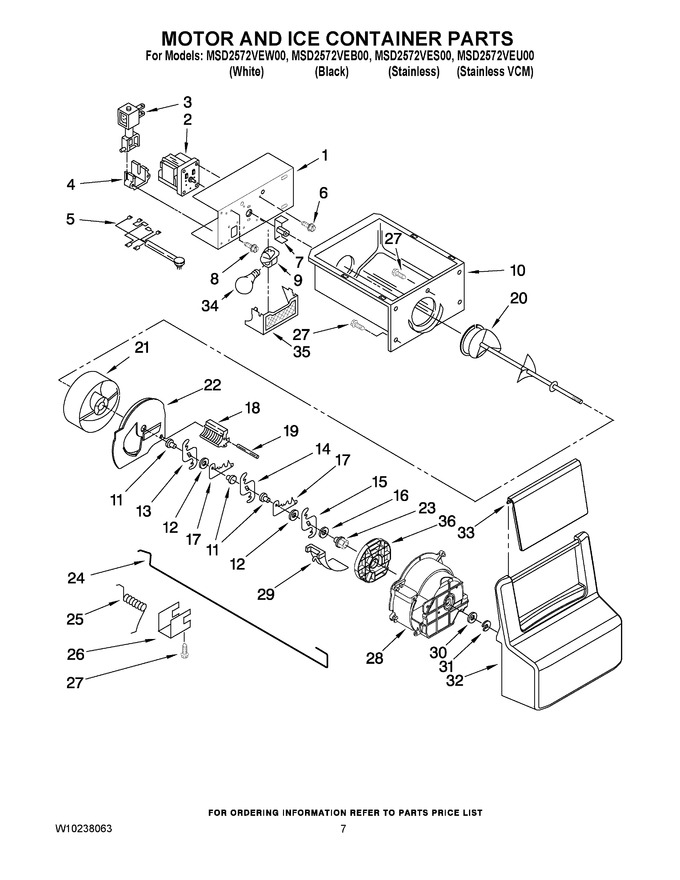

05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254587		Bracket, Motor		Appelez-nous	-
2	W11671282		Motor, Dispenser   (Replaces: W10181208)			Immediately	$ 110.51
3	WP2152713		Soleniod Assembly   (Replaces: 2152713)				$ 250.11
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 10.87
5	2311639		Wiring Assembly, Ice Dispenser   (Replaces: 2325303)				$ 147.17
6	WP489399		Screw (6)   (Replaces: 489399)				$ 7.30
7	WPW10169511		Coupling, Motor   (Replaces: W10169511)				$ 24.51
8	WP489478		Screw   (Replaces: 489478)				$ 8.18
9	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
10	WPW10670845		Ice Container   (Replaces: 2196091)				$ 199.19
11	W10189661		Spacer, Step (3)				$ 53.48
12	W11032808		Spacer, Flat (2)   (Replaces: W10189658)				$ 10.63
13	W10278731		Blade, Rotary   (Replaces: 2257022)				$ 90.87
14	W10278732		Blade, Rotary   (Replaces: 2257023)				$ 91.00
15	W10278733		Blade, Rotary   (Replaces: 2257024)				$ 91.00
16	W10189660		Washer, Plain		Appelez-nous	-
17	W10181990		Blade, Fixed (2)		Appelez-nous	-
18	W10138203		Block, Blade   (Replaces: W10189708)		Appelez-nous	-
19	489229		Roll Pin				$ 48.47
20	W10422851		Auger   (Replaces: 2196295)				$ 174.14
21	4388736		Drum   (Replaces: 2305377)				$ 96.97
22	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 34.85
23	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.90
24	W11596045		Control Arm   (Replaces: 2155231)				$ 35.51
25	1119020		Spring, Return				$ 19.13
26	1119021		Retainer Clip, Rod				$ 10.96
27	WP488787		Screw   (Replaces: 488886)				$ 11.26
28	WPW10185018		Housing, Crusher   (Replaces: W10185018)				$ 130.65
29	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.95
30	489234		Washer, Plain				$ 14.04
31	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 12.78
32	W11427433		Front Cover, Ice Container   (Replaces: W10189191)				$ 111.13
33	W11661892		Ice Door   (Replaces: W10189202)				$ 52.79
34	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
35	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 95.91
36	W10138206		Spacer - Crusher Housing		Appelez-nous	-
100	WPW10558423		Ice Container (complete)   (Replaces: W10138192)				$ 332.34

    View Diagram in Separate Window       Print Part List
