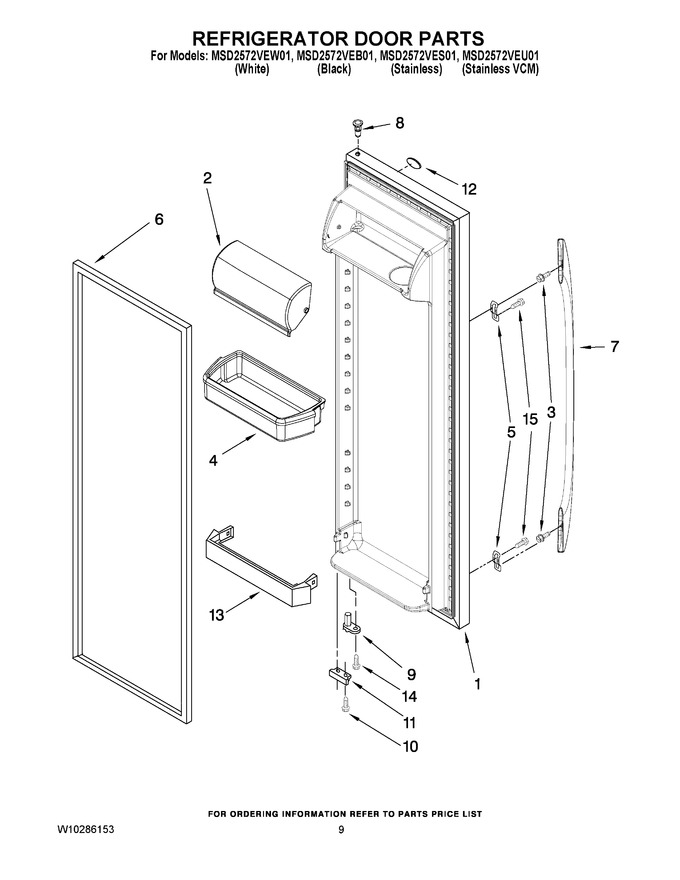

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10201114		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10201117		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
1	W10201116		Refrigerator Door (includes Item 6) (stainless Vcm)		Appelez-nous	-
1	W10201121		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	W10184500		Screw				$ 36.30
4	WP2203828		Door Bin (3)   (Replaces: 2203828)				$ 95.52
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 317.14
7	WPW10170739		Handle (antique Steel)   (Replaces: W10170739)				$ 346.58
7	WPW10170749		Handle (white)   (Replaces: W10170745)				$ 299.26
7	WPW10170750		Handle (black)   (Replaces: W10170746)				$ 295.08
8	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	W10185570		Bracket, Door Stop (chrome)				$ 11.59
11	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
13	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
15	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
