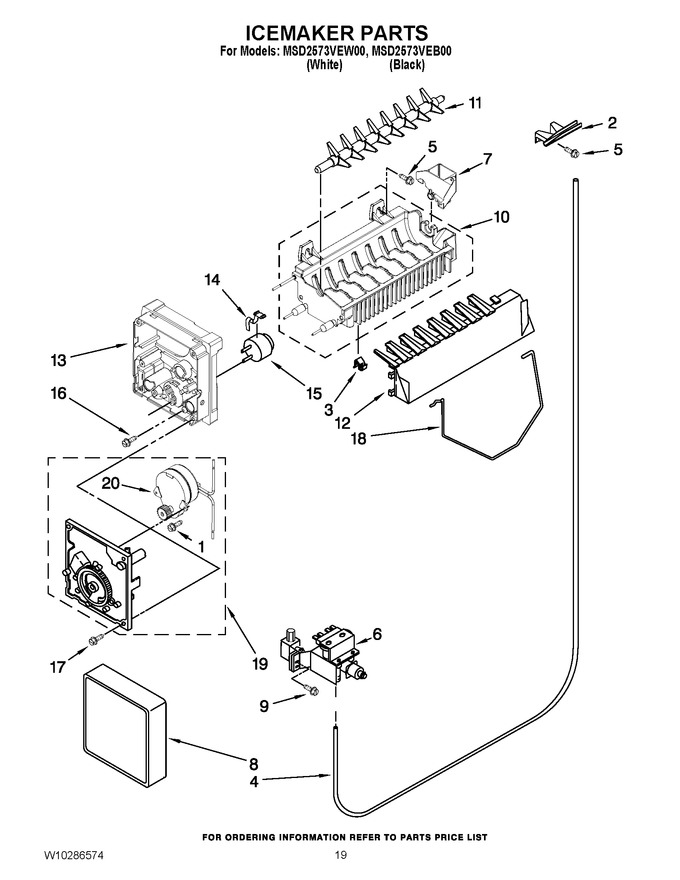

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 489136 | Screw |
|
$ 10.29 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 33.64 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 4 | W10823511 | Tube-water (Replaces: W10357076) |
|
Immediately | $ 32.41 | ||||
| 5 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 6 | WPW10179146 | Filter Valve (Replaces: W10179146) |
|
Immediately | $ 99.47 | ||||
| 7 | W10122561 | Cup-water Fill |
|
$ 27.77 | |||||
| 8 | WPW10289690 | Cover (Replaces: W10289690) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 10 | WPW10300025 | Mold & Heater Assembly (also Order 542638) (Replaces: W10300025) |
|
Immediately | $ 192.30 | ||||
| 11 | W10318914 | Ejector |
|
$ 36.27 | |||||
| 12 | WPW10122563 | Ice Striper (Replaces: W10122563) |
|
$ 94.69 | |||||
| 13 | WP2195914 | Support (Replaces: 2195914) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 15 | 628532 | Thermostat (also Order 542369 Cement Alumilastic) |
|
$ 103.88 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 18 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 60.20 | ||||
| 19 | 8201515 | Module Assembly (includes No.20) (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 20 | N/P | Motor (not Serviced, Order No.19) |
|
- | |||||
| 100 | WPW10300022 | Complete Icemaker Assembly (Replaces: W10300022) |
|
Immediately | $ 247.49 |
